Tools, APP Software Used etc.

fusion360

Description

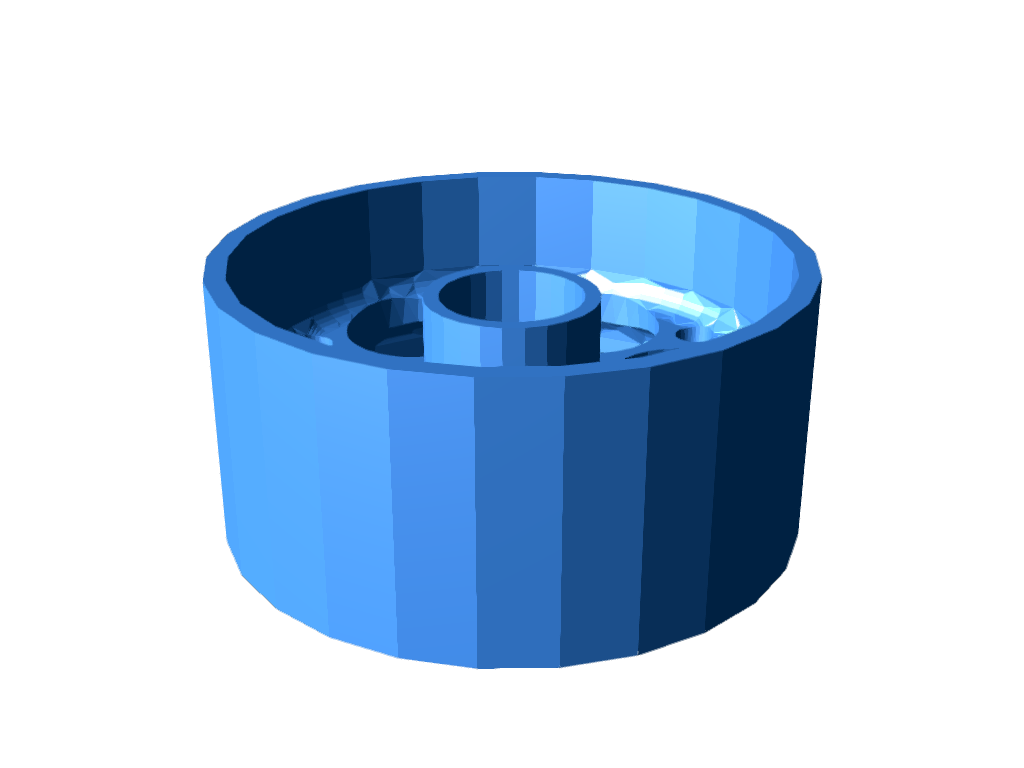

Wheels of Owla's F1 car in schools

My project is an F1 in Schools race car, focusing on aerodynamics, lightweight design, and optimized wheels for maximum speed and efficiency.

I wanted to challenge myself to combine creativity and engineering, applying real-world physics to design a competitive car.

The car converts CO₂ cartridge energy into kinetic energy, with optimized wheels, aerodynamics, and weight distribution to minimize drag and maximize track performance.

CAD-Custom parts and enclosures

RuedaDelantera.step

CocheMundialesDefinitivo DibujoRuedaTrasera.pdf

CocheMundialesDefinitivo DibujoRuedaDelantera.pdf

Aug 19,2025

475 views

Wheels of Owla's F1 car in schools

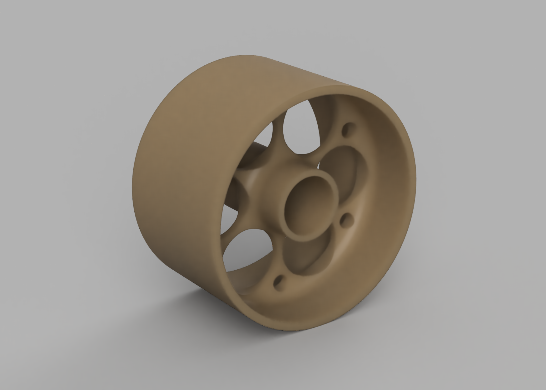

This is Owla's 2025 national F1 in Schools wheel design, optimizing weight and inertia while ensuring strength and easy CNC manufacturing.

475

Published: Aug 19,2025
