Components
|
|
LDC0851HDSGRTexas Instruments
|
x 1 |
Description

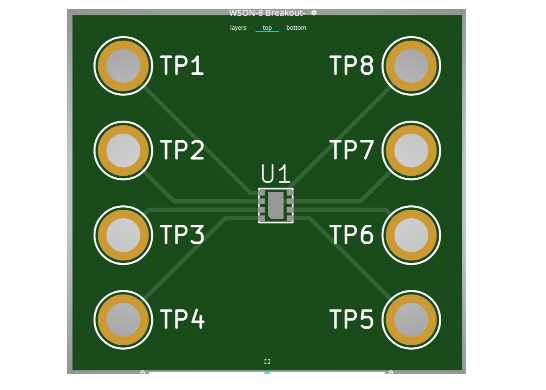

WSON-8 Breakout
Simple really. I needed a breakout board for the 2x2mm LCD0851 chip to test out some concepts. This will likely require a heat gun/ hot plate in order to solder as the pins are not exposed at all. Each pin is broken out and DAP (the bottom pad) is connected to pin 7 (recommended by the data sheet).
**IF OTHER CHIP IS USED, MAKE SURE THE PIN 7 IS CONNECTED TO DAP**
Feb 12,2025
781 views
WSON-8 Breakout
2 Layers PCB 21 x 23 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
A breakout board for the WSON 8 footprint. This was specifically used for the LDC0851 inductive switch but should be more or less universal.
781
0
0
Published: Feb 12,2025
Standard PCB
Download Gerber file 4
PCBWay Donate 10% cost To Author
Only PCB
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
