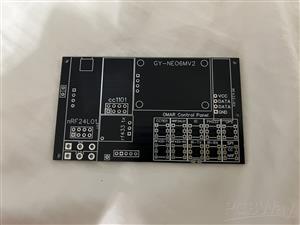

OMARv7 for the CYD

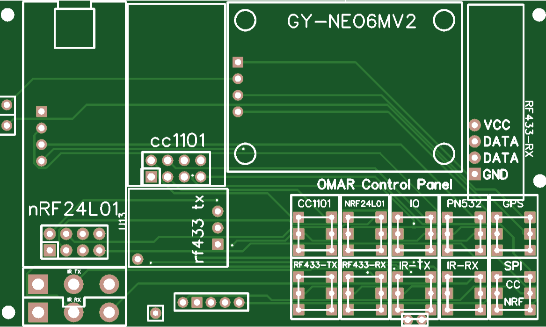

2 Layers PCB 50 x 86 mm FR-4, 1.6 mm, 1, HASL with lead, Black Solder Mask, White silkscreen
CYD pcb for cc1101, rf433, gps, IR, RFID, and nrf24.
563
1
4
Published: Dec 07,2025
Add to cart

Project images are for reference only. Actual production is based on the manufacturing files on the project page. Please review the designer's notes (e.g., PCB thickness) and select the appropriate options. PCBWay is not responsible for issues caused by unsuitable parameter selections.
For more important ordering information, please refer to Read More

Copy this HTML into your page to embed a link to order this shared project
Copy
Copyright Info

Attribution-ShareAlike (CC BY-SA) License

Read More⇒
Under the Attribution-ShareAlike (CC BY-SA) License.
