Dimmable LED Panel_110.0x100.0mm_for_PCBWay

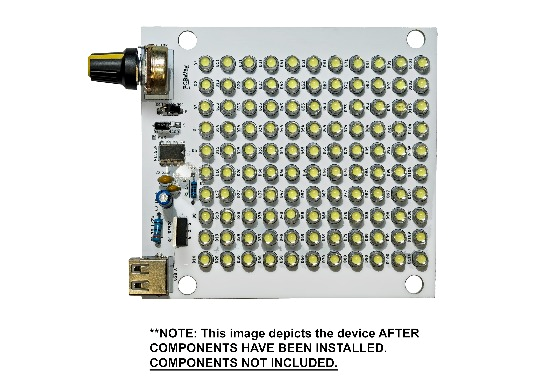

A multipurpose 110-LED PCB, a powerful light source that fits in your hand. Handy as a backup light for photographers, mechanics, and electronics enthusiasts alike, this 100mm x 110mm board provides a brightness dial controlling a 555 timer which drives a digital MOSFET. Whether you’re shooting videos, fixing engines, or honing your soldering skills, this compact and easy-to-build PCB delivers. As a general-purpose light, it’s the perfect companion for any dark corner or tricky situation.

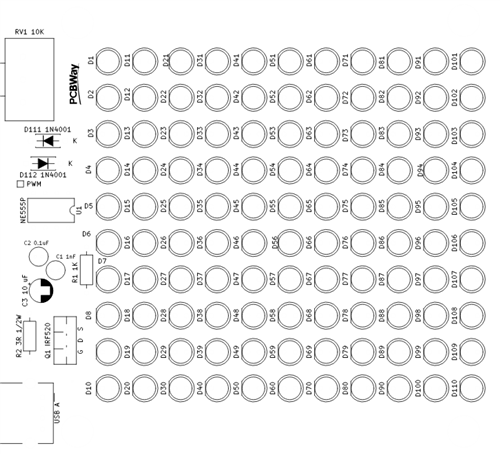

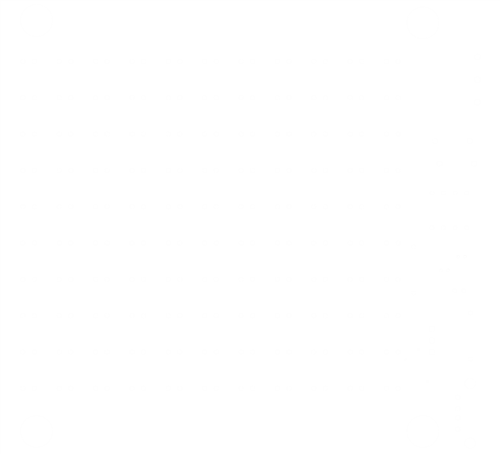

Schematic and Layout

Dimmable USB-Powered LED Panel Schematic Diagram

Dimmable LED Panel.pdf

Download Gerbers Download BOM(Bill of materials)

Mar 08,2026

215 views

Dimmable LED Panel_110.0x100.0mm_for_PCBWay

2 Layers PCB 100 x 110 mm FR-4, 1.6 mm, 1, HASL with lead, White Solder Mask, Black silkscreen
