Components
|
|
TIP 110, TIP 120, TIP 140, ect |
x 4 | |
|
|
TIP115, TIP125, TIP, 145 etc |
x 4 | |
|
|
CD4069UBETexas Instruments
|
x 1 | |
|
|
1N4148Any
|
x 8 | |
|
|
1k resistor |
x 11 | |
|
|
2.2 µF cap or smaller |
x 1 |
Description
W352442ASZ29_motor control dual
A dual motor control that uses TIP, or similar, transistors to make a dual H-Bridge circuit.
You need 4 PNP transistors, and 4 NPN.
You will need an inverter chip of some sort.
Aug 30,2025
109 views
W352442ASZ29_motor control dual

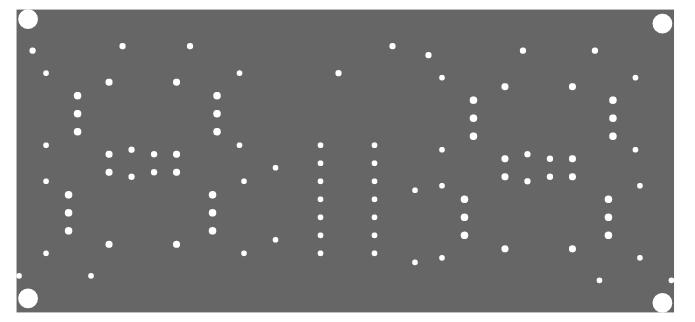

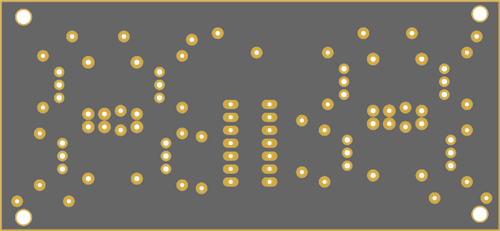

1 Layers PCB 45.1 x 97.8 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
Dual motor control with the use of TIP transistors or similar.
109
0
0
Published: Aug 30,2025
Standard PCB
Download Gerber file 0
PCBWay Donate 10% cost To Author
Only PCB
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
