Components
|
|
TIP 110, TIP 120, TIP 140, ect |
x 2 | |
|
|
TIP115, TIP125, TIP, 145 etc |
x 2 | |
|
|
2N3904 |
x 2 | |
|
|
1N4148Any
|
x 4 | |
|
|
2.2 µF cap or smaller |
x 1 | |
|
|
1k resistor |
x 6 | |
|
|
10k resistor |
x 2 |
Description
Larger H-Bridge

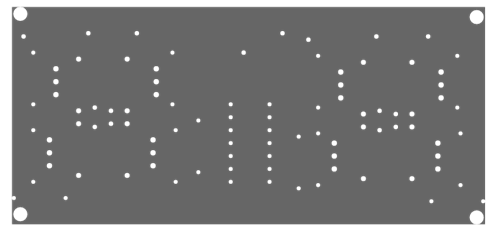

This is a single H-Bridge circuit that has bigger traces and uses bigger transistors.
You can use the PNP, and NPN transistors of your choice, but was designed to use the TIP series.
NPN= TIP110, TIP120, TIP140 etc
PNP= TIP115, TIP125, TIP145 etc
The 2N3904 transistor can be any NPN logic transistor. They are the invertors.
Aug 30,2025
244 views
Larger H-Bridge
This is an H-Bridge that uses larger transistors for bigger motors.
244
0
0
Published: Aug 30,2025
Standard PCB
Download Gerber file 0
PCBWay Donate 10% cost To Author
Only PCB
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
