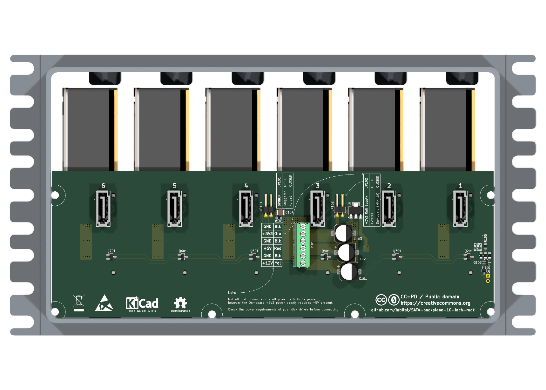

This project is an open-source SATA backplane PCB designed specifically for compact 10-inch rack mount enclosures. It provides a clean, reliable way to connect and power multiple 2.5" or 3.5" SATA drives in a modular rack setup — ideal for DIY NAS builds, homelabs, servers, and storage experiments.

Key Features

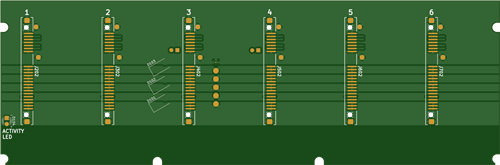

• 6 SATA Drive Slots – Supports up to 6 drives via standard SATA connectors.

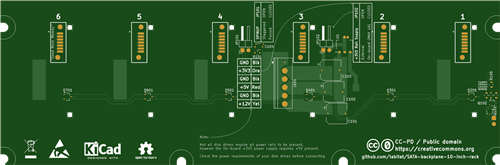

• Simple Power Distribution – Integrated screw terminal block for +3.3V, +5V, +12V, and GND rails, with filtering capacitors for stable operation.
• Rack-Friendly – Designed to fit 10-inch rack mounts, making it easy to integrate into small server or lab environments.
• Modular & Open Hardware – Released under CC0 / Public Domain license, encouraging reuse, modification, and community improvements.
• 3D Printed Support – A matching 3D-printed frame/enclosure has been developed to complement the PCB for quick and robust installation.

Why This Project?

Standard SATA backplanes are often designed for larger 19-inch server racks or expensive proprietary enclosures. This project fills the gap for hobbyists, makers, and professionals who want compact, cost-effective, and customizable storage solutions.

Open Source

Both the PCB design (KiCad) and 3D print files are fully open source and available on GitHub:

👉 https://github.com/labitat/SATA-backplane-10-inch-rack

You’re welcome to fork, modify, and improve the design to fit your own homelab or data storage projects!
