Jerome Stoove
NEW ZEALAND • + Follow
Components
|

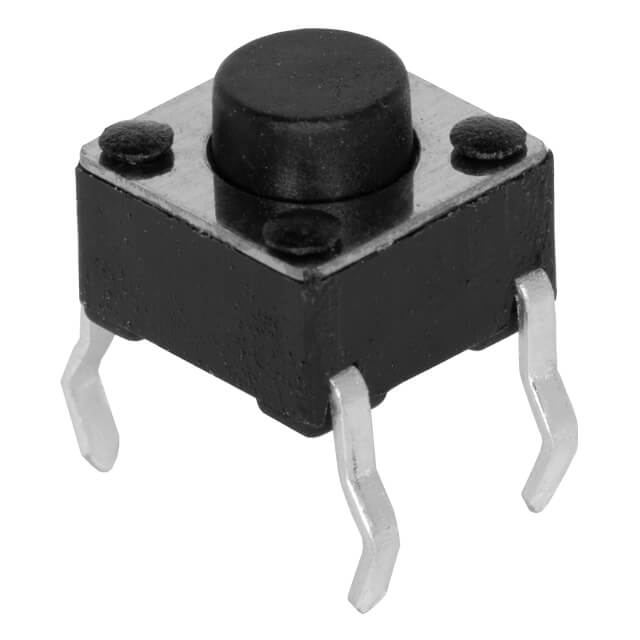

TS02-66-50-BK-160-LCR-DSame Sky (Formerly CUI Devices)
|
x 1 | |
|
|
EN11-HNM1AF15TT ELECTRONICS PLC
|
x 1 | |
|
|
RP2040 ZeroWaveshare
|
x 1 | |
|
|
1.3 OLED module white color IIC I2C 128X64 1.3 inch |
x 1 |
Tools, APP Software Used etc.
|
KiCad 9.0 |
Description

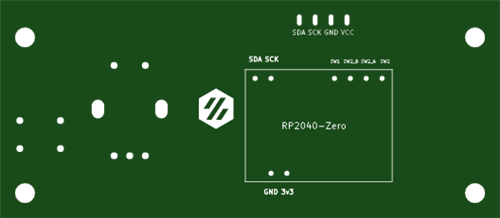

Voron 0 oled display pcb
I decided to recreate the voron v0 display pcb for a low cost and easily assembly of the components. This minimal pcb is controlled by the rp2040 zero by waveshare ( a smaller form factor raspberry pi pico). It retains the same functionality of the official display, depending on how you code it.
Schematic and Layout
V0-Display-RP2040-Zero.kicad_pcb
V0-Display-RP2040-Zero.kicad_pro
V0-Display-RP2040-Zero.kicad_sch
Apr 22,2025
302 views
Voron 0 oled display pcb
A simple pcb I created that is easy to assemble while keeping the cost low. Matching functionality of the official display created.
302
0
0
Published: Apr 22,2025
Standard PCB
Download Gerber file 4
PCBWay Donate 10% cost To Author
Only PCB
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
