Volvo Penta Panel Alarm Card
PCB Card for Volvo Penta Motor Panel / Alarm
For Motor 2001 2002 2003
This board replaces universal board 22354203 for Volvo engine control panels:
ENGINES *Tested
MD2010, MD2020, MD2030, MD2040
2001*, 2002*, 2003*, 2003T*, 2003TB*
D1-13, D1-20, D1-30, D2-40, D2-55, D2-75, D2-50F, D2-60F, D5A, D12
All documentation is attached.
The 3D printer file is also included.
Schematic and Layout
Documentation (1/2) French
Notice_Carte_Panel_Volvo.pdf
Documentation (2/2) French
Fabrication_Carte_Panel_Volvo.pdf
CAD-Custom parts and enclosures
Support PCB
Supp_CarteElec.STL
Apr 23,2025
718 views
Volvo Penta Panel Alarm Card

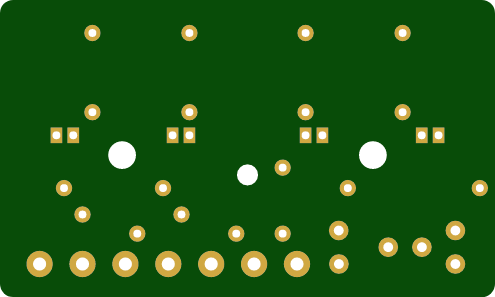

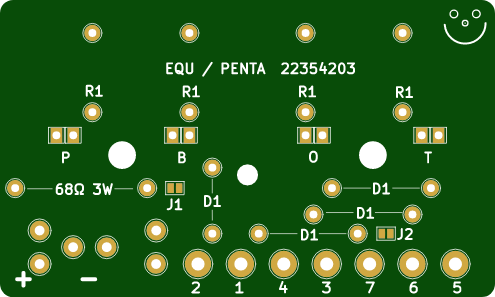

2 Layers PCB 45 x 75 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
PCB For Volvo Penta Panel Alarm Card (Equ 22354203)
Documentation and .stl file attached
