Andrea Fato
ITALY • + Follow
Tools, APP Software Used etc.
|
STMicroelectronics STM32CubeMX |
|
|
STM32CubeIDESTMicroelectronics
|
Description
Video player watch

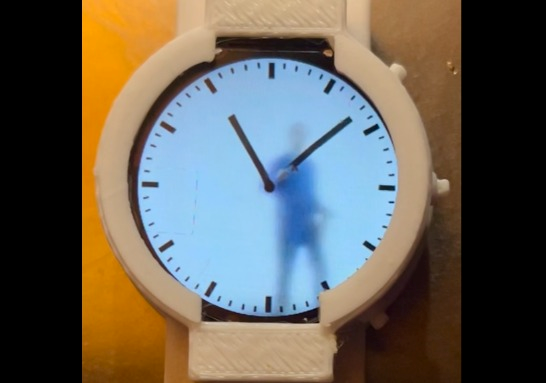

This project is a digital watch that dynamically displays the current time by running a 12-hour video. The video is designed to change in real time, providing an engaging way to view the time.
The watch includes the following features:
- Three Buttons: Allowing users to set the time.
- Micro SD Slot: Users can insert a micro SD card containing the 12-hour video.
- Accelerometer:
The watch wakes up with the movement of the wrist, ensuring convenience and ease of use.
Code
https://github.com/andrea-cpu96/Smart-Watch
https://github.com/andrea-cpu96/Smart-Watch
Schematic and Layout
Schematic
SCH_D-Watch_Sch_v1.4_2025-02-22.pdf
PCB
PCB_D-Watch_PCB_v1.4_2025-02-22.pdf
Mar 03,2025
813 views
Video player watch

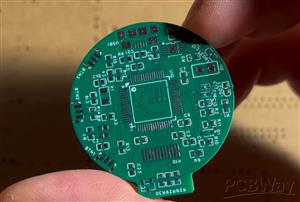

4 Layers PCB 36.9 x 39.9 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
A digital watch ables of displaying the current time through a 12h MJPEG video
813
3
1
Published: Mar 03,2025
Standard PCB
Download Gerber file 3
PCBWay Donate 10% cost To Author
Only PCB
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
