Universal Smart-Home Modular Hub

A compact, scalable, multi-protocol communication platform designed for modern smart homes. Built around a powerful ESP32-S3, with plug-in radio modules for Zigbee/Thread and Proprietary RF. Reliable power architecture, clean RF design, and automatic module detection.

🌍 Overview

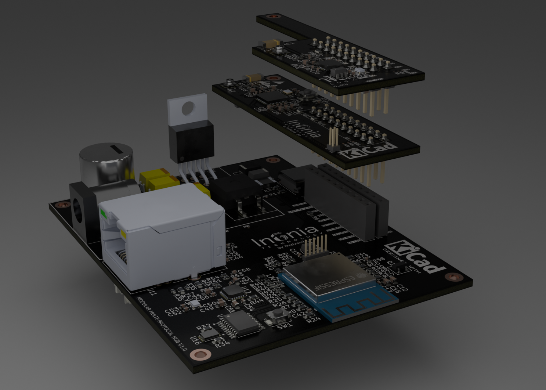

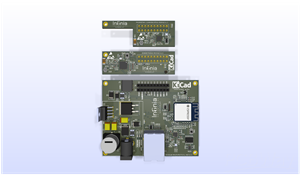

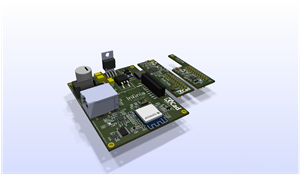

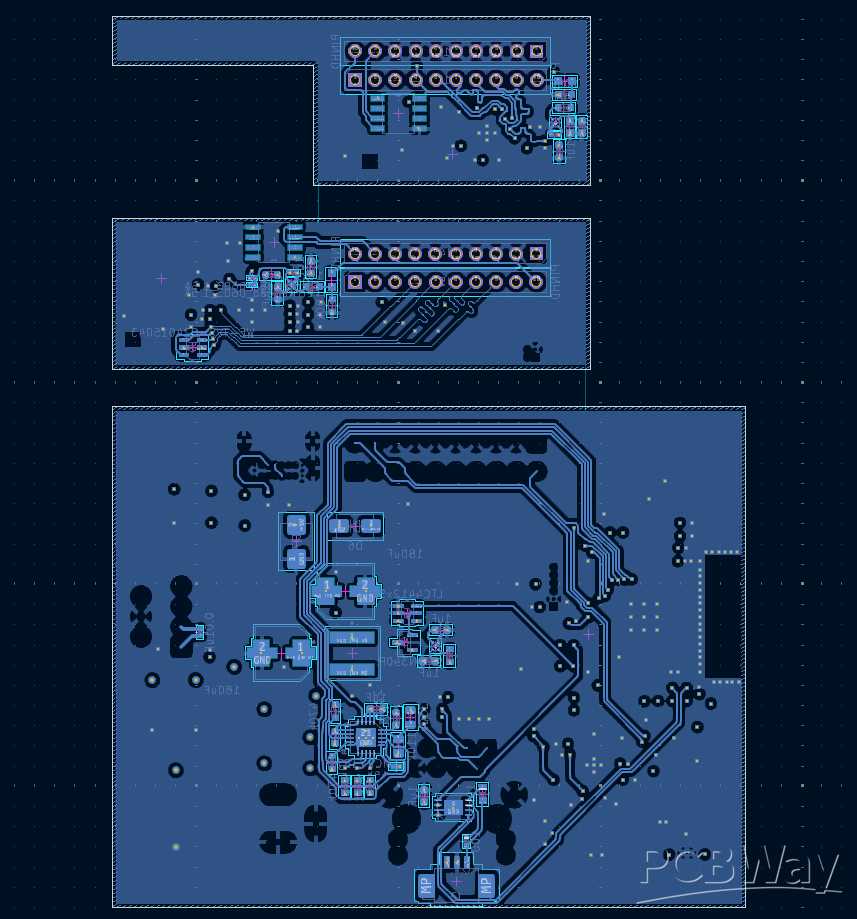

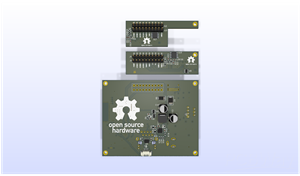

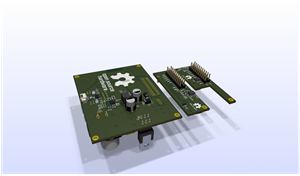

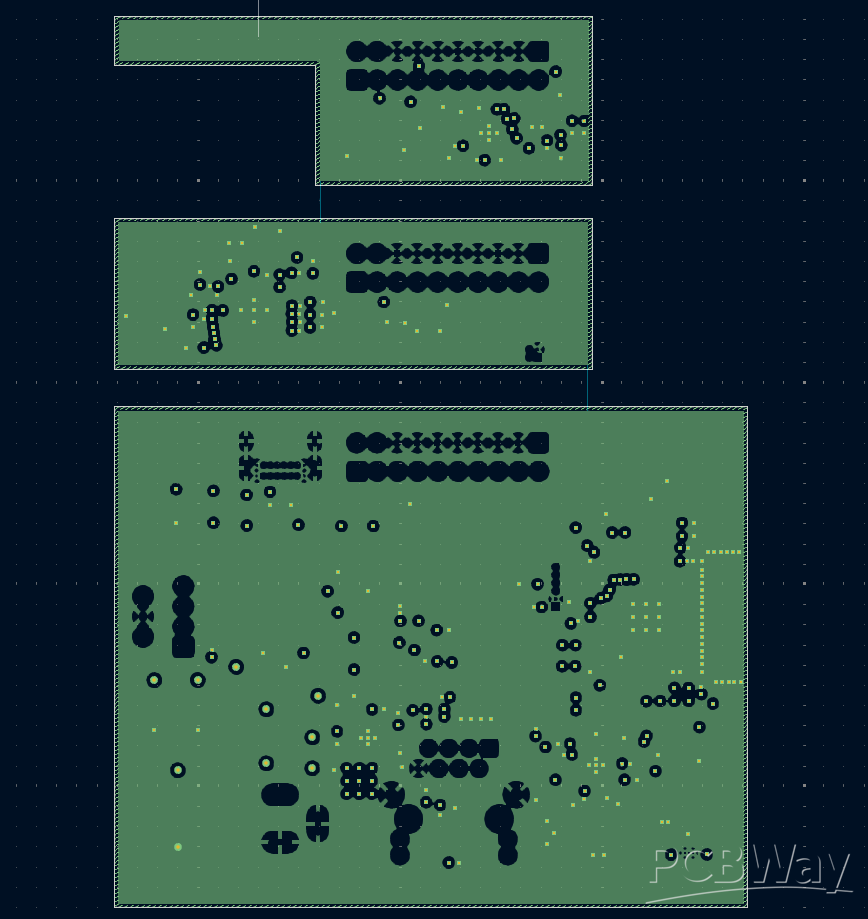

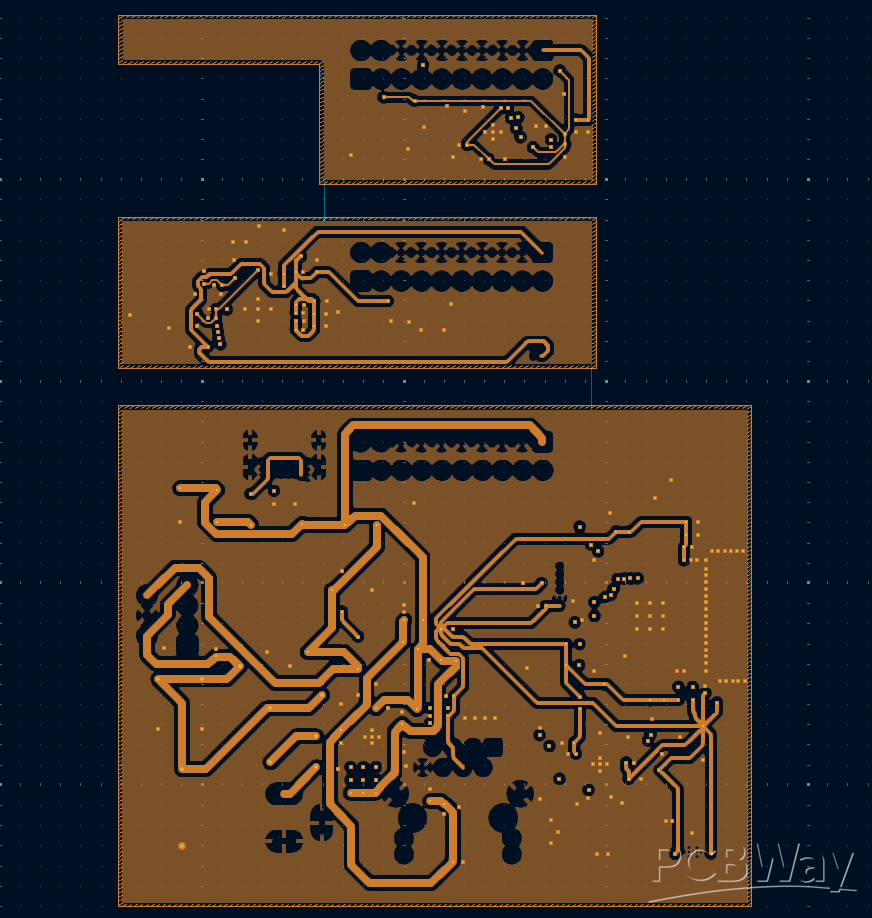

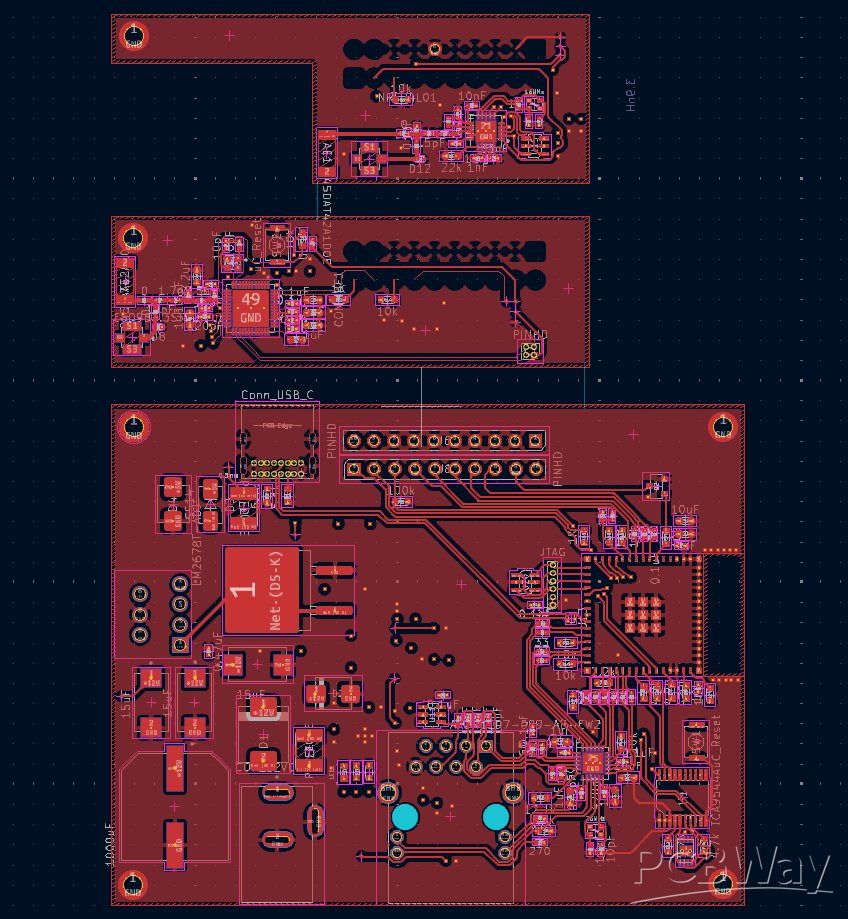

This system uses a three-board modular hub architecture:

1) Main Board – ESP32-S3 Controller

Contains the ESP32-S3 with native Wi-Fi + Bluetooth LE, full power management, Ethernet support, and the universal expansion bus.

2) Zigbee/Thread Module – EFR32MG24

A dedicated 2.4 GHz radio module supporting Zigbee, Thread, and Matter over Thread with a high-efficiency antenna.

3) Proprietary RF Module – nRF24L01+

A flexible low-power 2.4 GHz module for custom protocols, legacy devices, and private links.

⚠️ Only one expansion module is active at a time.

The Main Board can run standalone using Wi-Fi and BLE even with no module attached.

🎯 Problem This Project Solves

Most smart-home hubs are:

• Locked to one brand or protocol
• Difficult to expand
• Closed hardware
• Not modifiable or repairable
• Dependent on cloud services
• Not designed for RF noise isolation

This project solves these issues with a fully documented, open, modular, serviceable platform.

🚀 Main Features

🧠 Main Board – ESP32-S3 Core Controller

Capabilities:

• Native Wi-Fi + BLE
• USB programming
• JTAG debugging
• I²C bus for module identification
• SPI bus shared with expansion modules
• Presence-detect signal
• Ethernet PHY
• Local battery backup
• Clean, isolated power rails

Standalone Operation

If no radio module is plugged in, the board still supports:

• Wi-Fi control
• BLE provisioning
• Local automation
• OTA updates

📡 Zigbee / Thread / Matter Module – EFR32MG24

Capabilities

• Zigbee
• Thread
• Matter over Thread
• High-efficiency chip antenna or external u.FL
• SPI + IRQ communication
• Local low-noise LDO
• EEPROM with module ID
• Hardware reset & enable control
• SWD header for development

Why a Separate Board?

• RF noise isolation
• Easy upgrades
• Thermal and EMI improvements
• Lower main-board complexity

📡 Proprietary RF Module – nRF24L01+

Capabilities

• 2.4 GHz bidirectional transceiver
• SPI interface
• IRQ line
• CE line for TX/RX control
• Local LDO for clean RF power
• On-board EEPROM for identification

Why It Exists?

• Legacy systems
• Private, encrypted links
• Ultra-low-power sensors
• Custom protocols

🔋 Power Architecture

Main Board

• 12 V input
• Step-down to 5 V
• 3.3 V LDO for logic
• Local LDOs for each RF module
• Battery charger & backup
• Inrush, surge, ESD protection
• Proper decoupling everywhere

Radio Modules

• Dedicated LDO
• Ferrite-bead power filtering
• Enable pin for power control
• RF-clean power domain

🧩 Automatic Module Identification (EEPROM)

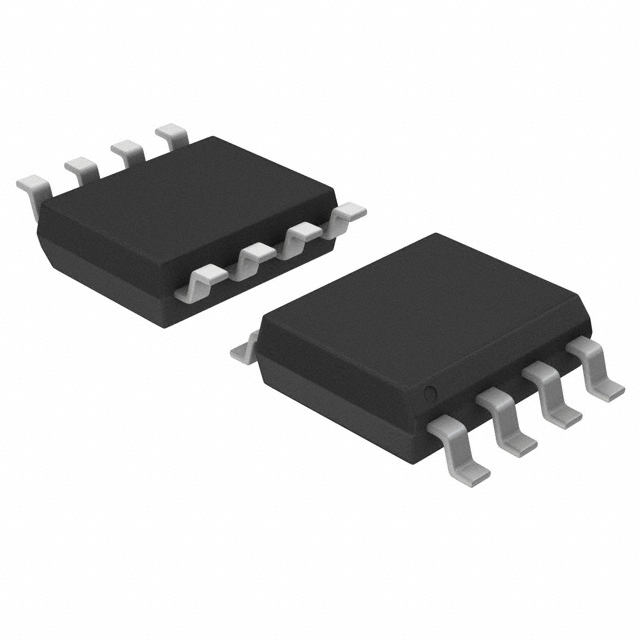

Every expansion module includes a 24AA02E48 EEPROM that stores:

• Unique EUI-48
• Module type ID

The ESP32 reads the EEPROM via I²C on boot and:

1. Identifies the module type
2. Powers only the selected module
3. Loads the appropriate firmware configuration

🛡️ Reliability & Safety

• TVS on power rails
• ESD protection on connectors
• Solid ground planes
• RF-clean routing
• Ferrite-bead domain separation
• Reverse-polarity protection
• Controlled RF impedance paths

🧭 Why This Architecture Is Better

• Fully modular — plug-in radio modules
• Upgradable — replace modules anytime
• Main board works standalone
• Automatic detection via EEPROM
• Clean RF design with isolated power
• Open hardware
• Supports Wi-Fi, BLE, Zigbee, Thread, Matter, Proprietary RF
• Future-proof platform
• Easy to manufacture & repair

The Universal Smart Home Hub represents a new way of thinking about home automation: open, modular, and completely free from closed ecosystems. Its three-board architecture allows the system to evolve over time, upgrade individual radios without redesigning the entire platform, and ensure a much longer lifespan than typical commercial hubs.

With a clean RF layout, advanced power management, support for multiple communication protocols, and an engineering approach focused on long-term reliability, this hub becomes an ideal platform for developers, makers, and companies looking for high-quality smart-home hardware.

If you’re looking for a solution that is robust, scalable, hackable, and ready for the future of Matter, Zigbee, Thread, and Wi-Fi, this platform delivers exactly that.
