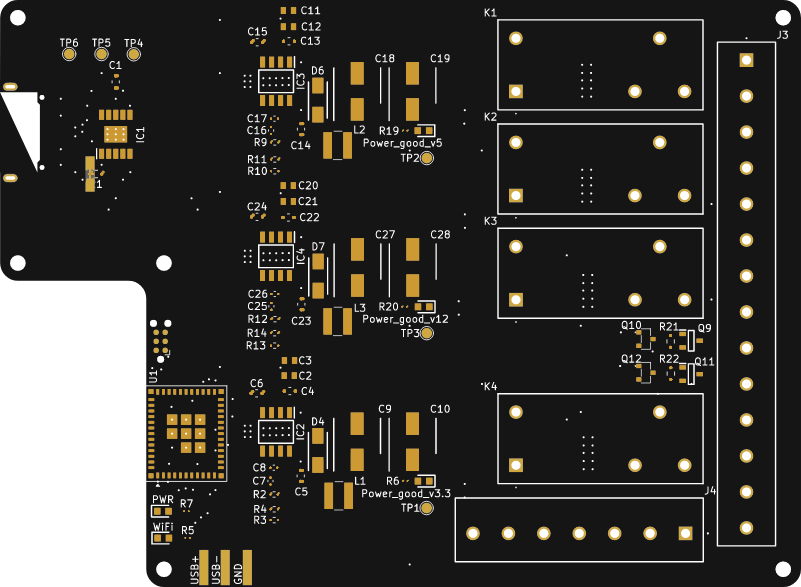

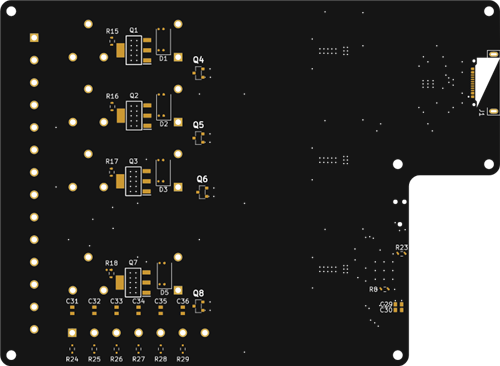

USB PD Board for 12-28v.kicad_pcb
A PD board to run off from USB C power bank being able to supply 100W of energy via 12-28v range stable 12v or stable 5v outputs with IOT.
Intended to run Truck lights and horn with 6 inputs for switches and 7 diferent outputs via relays NO. Meant to customise Kids Quad bikes etc with cool lighting with diferent voltage requirements.
