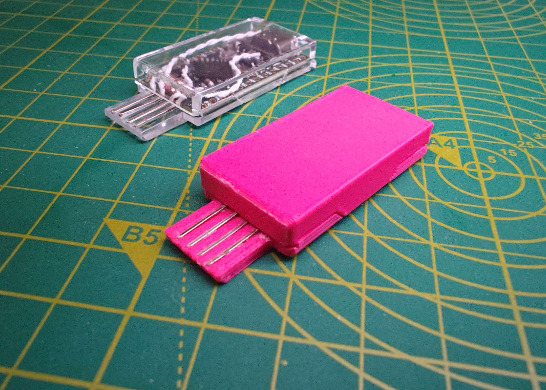

USB-A & USB-C ZMK Dongle
This is a project that I've had in the works for a while now! I'm always looking for ways to improve my setup and a dongle was on the list but for so long it couldn't be justified, simply because not everything works easily with just a USB-C port. But now that I have the best of both worlds, I can use the same board at home with a PC and on the go with all my devices.
Parts List
- Pro Micro–compatible Bluetooth board
- 4 header pins
- 4 wires

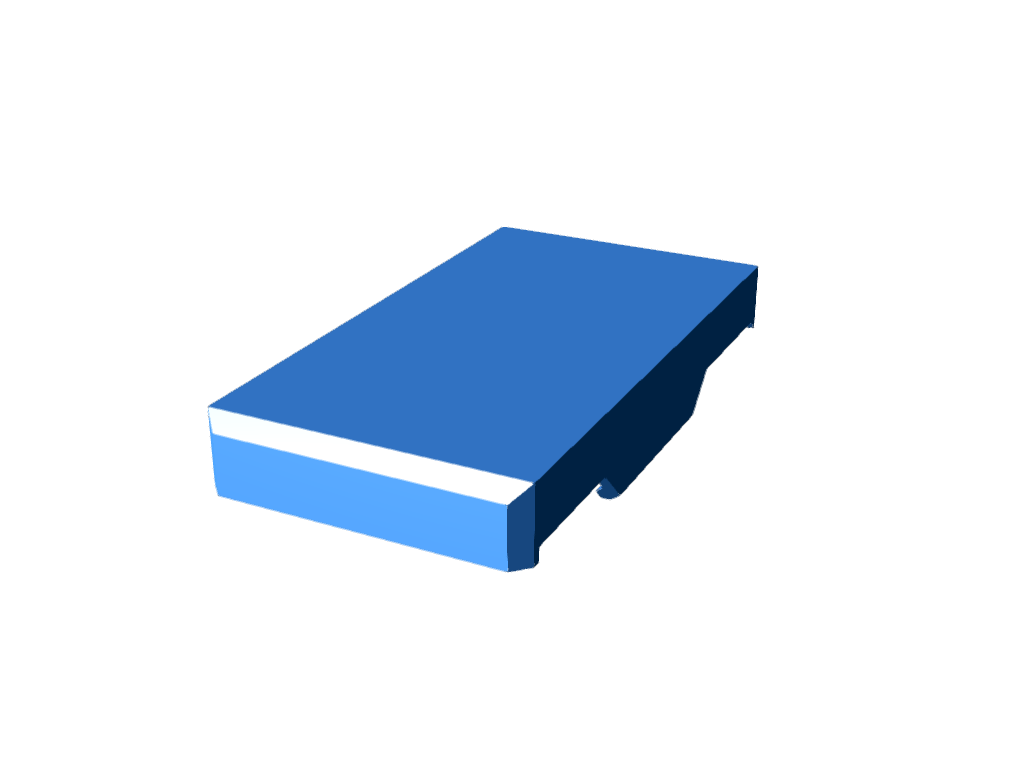

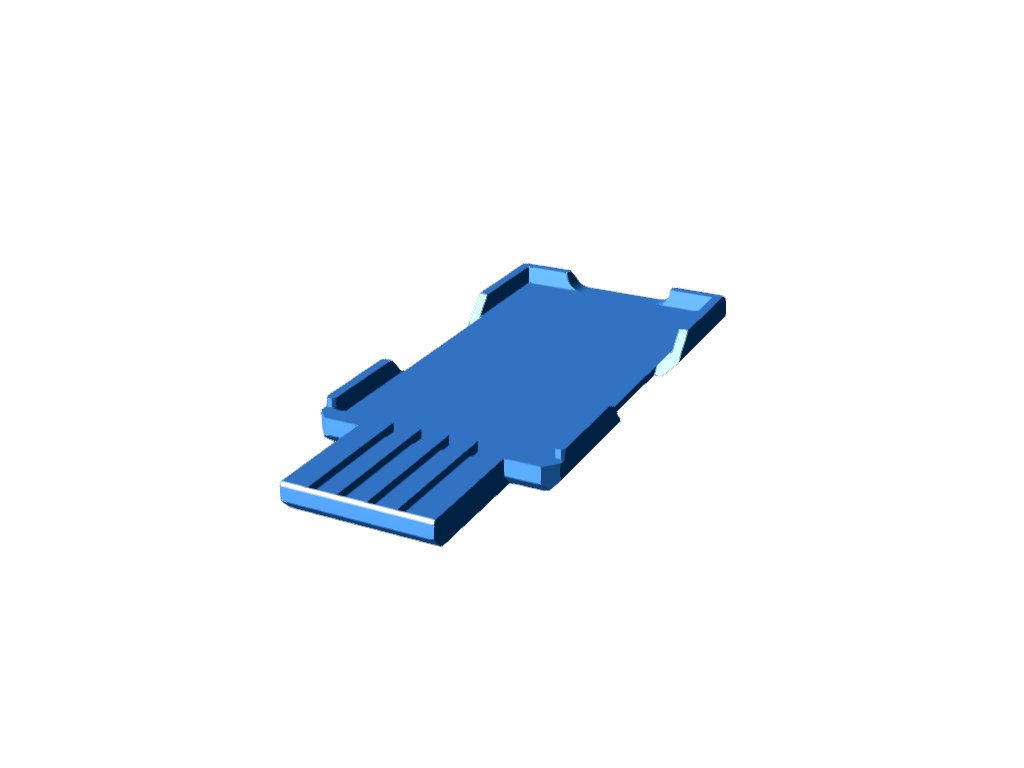

- Two 3D‑printed case halves
- Some patience :)
Watch the video or read the article for the full project:
Video: https://www.youtube.com/watch?v=qyW3JeO_EDc
Article: https://viscouspotential.medium.com/custom-usb-a-dongle-for-your-usb-c-split-board-9be952e871eb
