Description

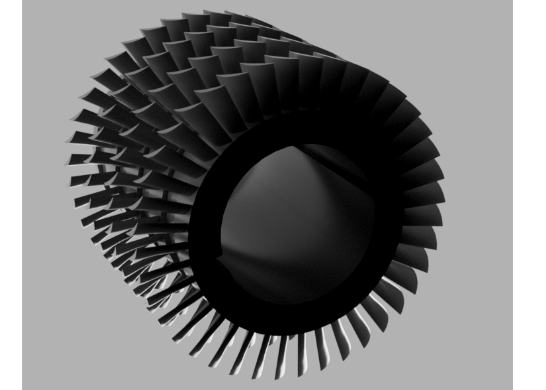

Turbojet Engine Axial Compressor
This projet is about building a jet engine. Here is a part of this engine.
It is optimizing compression ratio and provides, at maximum speed (30000 rotation/min), almost 1.5 bar of pressure.
It must be printed in SLA with technical resin or FDM with at least polycarbonate.
CAD-Custom parts and enclosures
CompresseurV0.step
Jul 16,2025
128 views
Turbojet Engine Axial Compressor

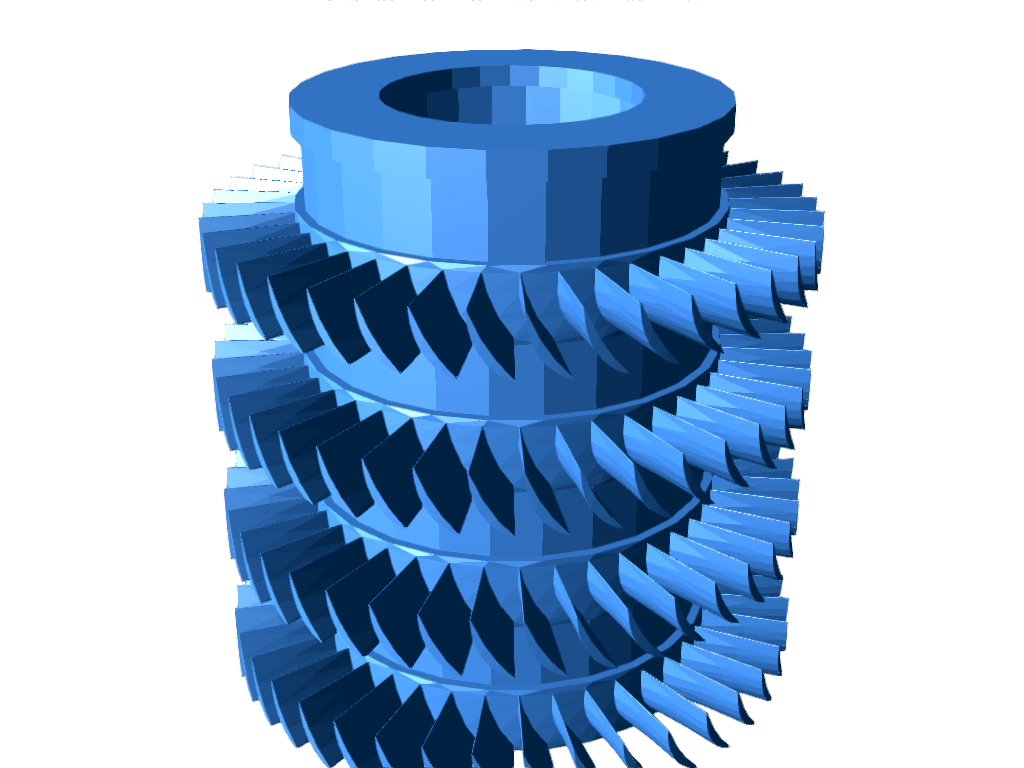

This model is an turbojet engine axial compressor.
128
0
0
Published: Jul 16,2025
