Mahesh Thilak K
INDIA • + Follow
Tools, APP Software Used etc.
|
KiCad 9.0 |
Description
Transformer-Power-Supply

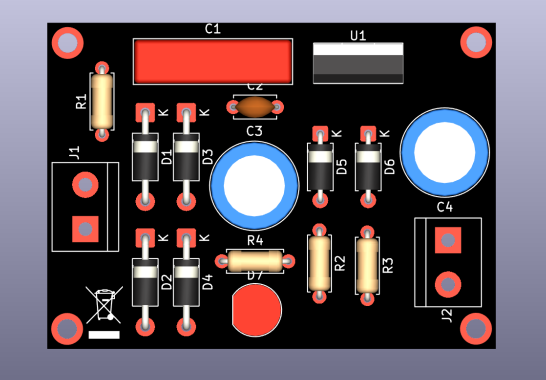

A compact AC-to-DC linear power supply PCB designed in KiCad. Features LM7805 voltage regulator, full-wave bridge rectifier with 1N4007 diodes, multi-stage capacitive filtering, and zener diode protection. Provides stable 5V DC output for microcontroller projects and embedded systems. Through-hole design for easy assembly.
Code
Transformer-Power-Supply Public
https://github.com/MAHESH-THILAK-K/Transformer-Power-Supply.git

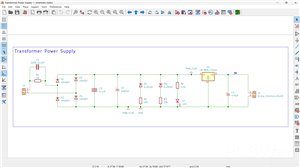

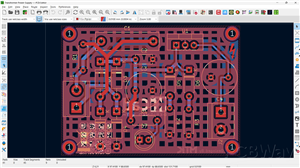

Schematic and Layout
Transformer Power Supply.kicad_sch
https://github.com/MAHESH-THILAK-K/Transformer-Power-Supply/blob/main/Transformer%20Power%20Supply.kicad_sch
CAD-Custom parts and enclosures
CAD

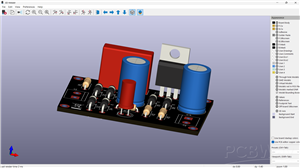

3D View.zip
Jan 08,2026
794 views
Transformer-Power-Supply
794
0
0
Published: Jan 08,2026
Standard PCB
Download Gerber file 5
BOM(Bill of materials)
PCBWay Donate 10% cost To Author
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
