Innevitable Pico

Innevitable Pico is a custom RP2040-based handheld gaming console designed to integrate

graphics, audio, storage, user input, battery operation, and USB connectivity into a single portable

platform. This document provides a comprehensive overview of the project architecture, hardware

subsystems, firmware capabilities, development workflow, and future expansion possibilities.

1. Project Introduction

The project is centered around the Raspberry Pi RP2040 microcontroller. The objective is to create

a compact handheld device capable of running games, graphical interfaces, multimedia

applications, and custom firmware. The design combines multiple hardware subsystems into a

cohesive platform that can be used for embedded development and experimentation.

2. RP2040 Microcontroller Overview

The RP2040 features a dual-core Arm Cortex-M0+ processor running up to 133 MHz, 264 KB of

SRAM, programmable I/O (PIO) subsystems, DMA controllers, timers, PWM peripherals, SPI, I2C,

UART, ADC channels, USB support, and external flash execution capabilities. These features make

it highly suitable for portable gaming and graphics applications.

3. System Architecture

The architecture consists of the RP2040 as the central controller connected to the display, storage

devices, audio subsystem, power management circuitry, user input buttons, USB interface, and

debugging connectors. Each subsystem communicates through dedicated interfaces to ensure

reliable operation.

4. Display Subsystem

The display subsystem provides the graphical interface for the console. The LCD is connected

through a high-speed communication interface and is responsible for rendering menus, game

graphics, status information, and animations. Efficient framebuffer management is essential for

smooth operation.

5. Storage Architecture

The system supports both onboard flash memory and removable microSD storage. Flash memory

stores firmware and critical resources, while the microSD card provides expanded capacity for

game assets, audio files, save data, and user content.

6. Audio System

Audio output is generated using PWM techniques controlled by the RP2040. Sound effects,

notifications, music playback, and voice playback can be implemented through software. The

hardware audio stage provides amplification suitable for a small speaker or external audio circuitry.

7. Input System

User interaction is handled through dedicated buttons. Directional controls and action buttons allow

menu navigation and gameplay. Debouncing and event handling are managed in firmware to

ensure reliable operation.

8. Power Management

The power subsystem includes battery input, voltage regulation, filtering, charging circuitry, and

protection mechanisms. Stable power delivery is critical for reliable operation of the display, storage

devices, and processor.

9. USB-C Connectivity

USB-C serves as the primary interface for power delivery, firmware flashing, serial communication,

and debugging. The RP2040 UF2 bootloader allows drag-and-drop firmware installation without

requiring dedicated programming hardware.

10. Firmware Architecture

Firmware is organized into multiple layers including hardware abstraction, device drivers, graphics

management, audio management, storage handling, user interface rendering, and application

execution. This structure simplifies maintenance and future expansion.

11. Supported Development Environments

Development can be performed using Pico SDK, Arduino-Pico, MicroPython, CircuitPython, or

custom firmware frameworks. Each environment offers different trade-offs between performance,

flexibility, and development speed.

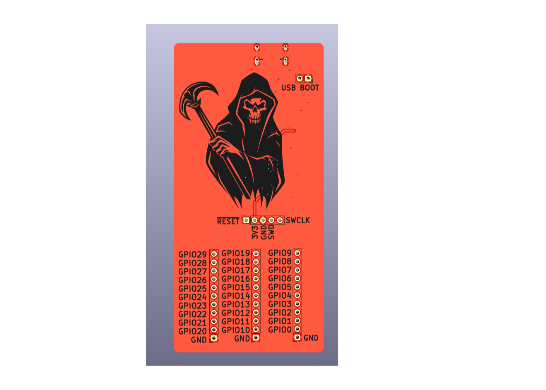

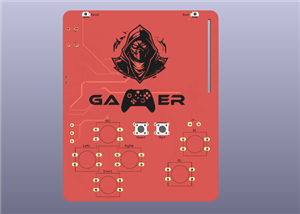

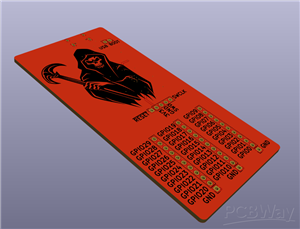

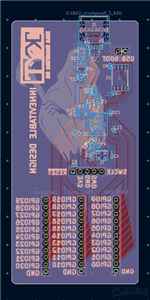

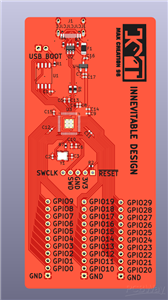

12. PCB Design Considerations

PCB design focuses on signal integrity, power distribution, component placement, decoupling

capacitor positioning, routing efficiency, thermal considerations, and manufacturability. Proper

layout practices improve reliability and performance.

13. Manufacturing Outputs

Project deliverables include schematic files, PCB layouts, Gerber files, drill files, pick-and-place

data, 3D models, STEP models, and bill of materials. These files support fabrication, assembly, and

mechanical integration.

14. Software Features

Potential software capabilities include game launchers, graphical menus, file browsers, audio

playback systems, configuration utilities, save management, and firmware update tools.

15. Future Expansion

Future versions may incorporate wireless connectivity, larger displays, improved audio systems,

haptic feedback, advanced battery monitoring, and expansion interfaces for external peripherals.

Conclusion

Innevitable Pico demonstrates how the RP2040 can serve as the foundation of a complete

handheld gaming and embedded platform. By combining graphics, audio, storage, power

management, and user interaction into a single device, the project showcases a practical

implementation of a modern RP2040-based portable system.
