Components

	TTP 223 TOUCH SENSOR	x 1
	LM7805 5 V REGULATOR	x 1
	IRF430B MOSFET	x 1
	10K RESISTOR 0805	x 1
	100 uF Capacitor 0805	x 2

Description

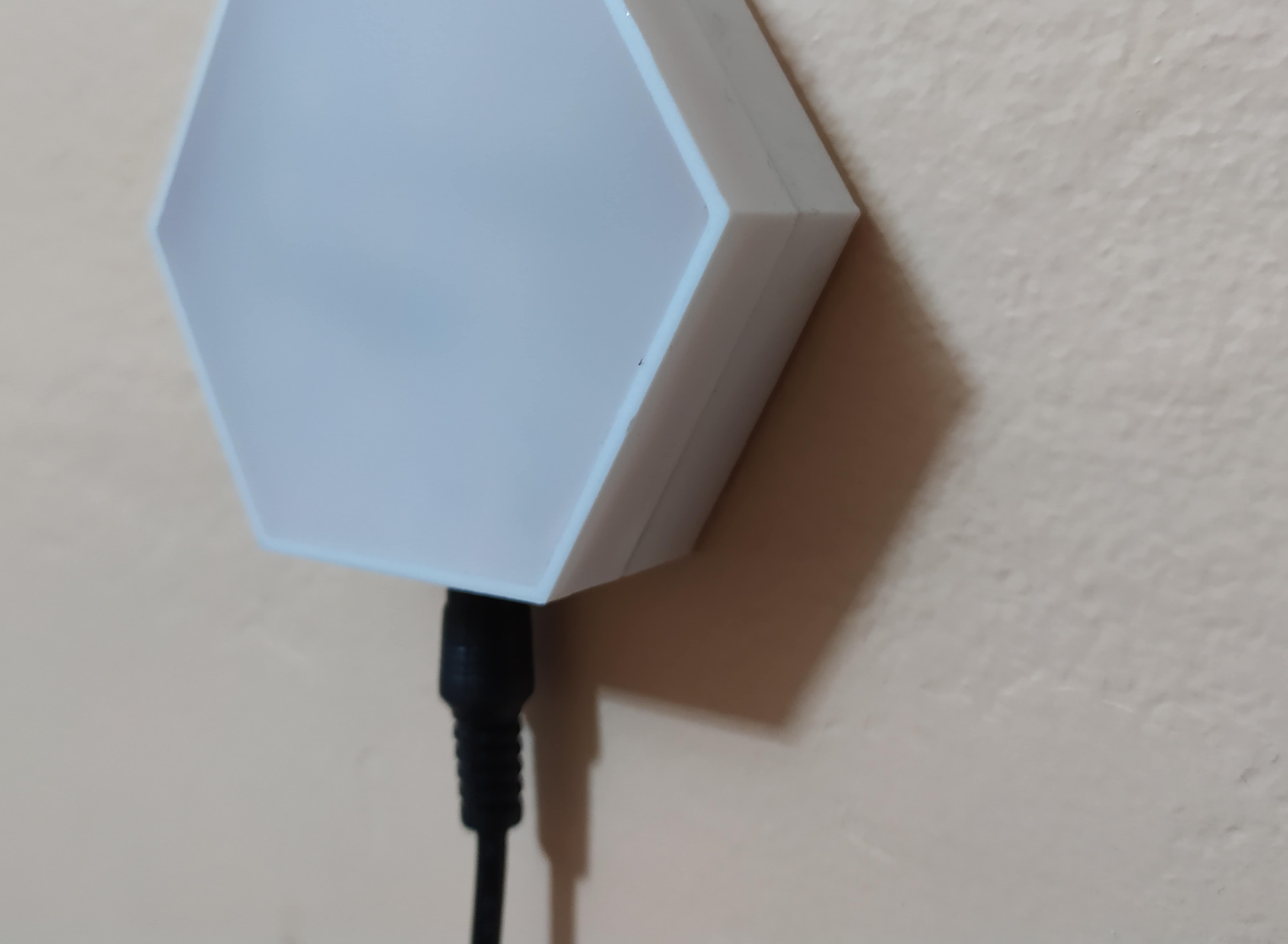

Touch The Llight

Now we will control the lights as in our project and Thanks to this system we will now be able to, control many devices just by touching them.

Code

https://elektroengineer.com/beelightouch-yakinda/

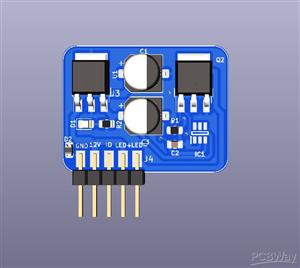

Schematic and Layout

https://drive.google.com/drive/folders/1rjTNAJZbr_qINoSC5t35fHDalgsdxFSj?usp=sharing
