Timmer_555_astable_blink_led

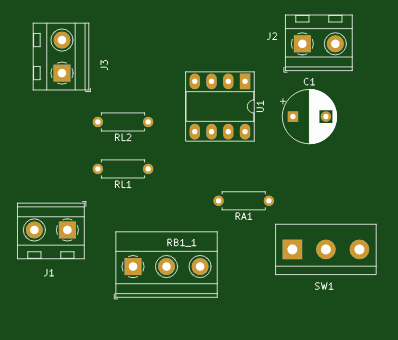

1 Layers PCB 51.5 x 60.3 mm FR-4, 1.6 mm, 1, HASL lead free, Blue Solder Mask, White silkscreen

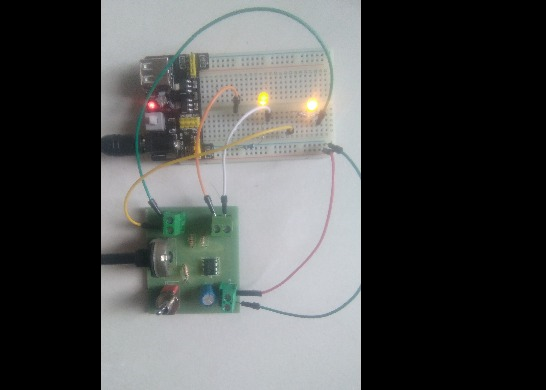

a simple circuit for blink a led/load at a variable frequency 0,5Hz to 1.5Hz in astable mode.
