This Smart House's WLED PCB

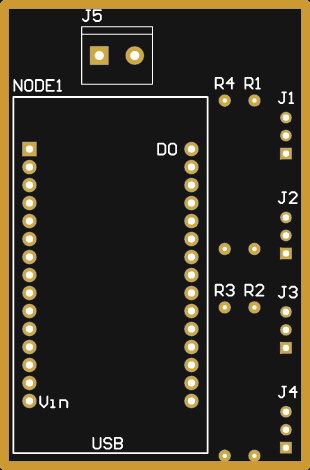

2 Layers PCB 42.5 x 65.2 mm FR-4, 1.6 mm, 1, HASL with lead, Black Solder Mask, White silkscreen
This is the PCB that showed on my WLED video.
