Game Boy Camera
UNITED STATES OF AMERICA • + Follow
Description
Tad Boy Camera
PLEASE NOTE: this Game Boy Camera is designed for the Tad Boy Color ONLY and WILL NOT fit in an OEM Game Boy
See the project page for ordering & build instructions: HERE
CAD-Custom parts and enclosures
Metal shell (CNC recommended)
tbcam metal v1.step
tbcam metal drawing 111524.pdf
Front shell (MJF / Nylon HP-PA-12 recommended)
tbcam top v1.stl
Bottom shell (MJF / Nylon HP-PA-12 recommended)
tbcam bottom v1.stl
Lens Holder (MJF / Nylon HP-PA-12 recommended)
tbcam holder v1.stl
Lens sleeve (black/gray resin recommended)
tbcam sleeve v1.stl
Switch (any material)
tbcam switch v1.stl
Sticker template
tbc cam sticker.svg
Metal shell no sticker version (CNC recommended)
tbcam metal no sticker v1.step
tbcam metal drawing 111524.pdf
Nov 04,2024
2,037 views
Tad Boy Camera
2 Layers PCB 60.5 x 55.2 mm FR-4, 0.8 mm, 1, Immersion gold, Green Solder Mask, White silkscreen

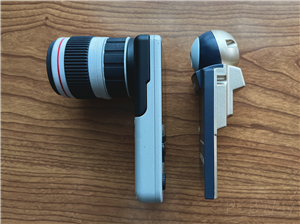

A small Game Boy Camera designed exclusively for the Tad Boy Color
2037
3
0
Published: Nov 04,2024
Standard PCB
BOM(Bill of materials)
Centroid file
PCBWay Donate 10% cost To Author
File Last Updated: 2024/11/16 (GMT+8)
File update record
2024-11-1604:35:24
CAD or technical drawing file is updated.
2024-11-0410:27:54
CAD or technical drawing file is updated.
2024-11-0410:12:19
CAD or technical drawing file is updated.
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-NonCommercial-ShareAlike (CC BY-NC-SA)
License.
