Components

1. 8×18kΩ resistor 1/4W.

2. 4×560Ω resistor 1/4W.

3. 2×15kΩ resistor 1/4W.

4. 4×10kΩ resistor 1/4W.

5. 2×Zener diode 5V.

6. 4×4.7Ω resistor 1/2W.

7. 2×Transistor 2N5551.

8. 11×Capacitor 0.1uF(104) 50V.

9. 2×Capacitor 5.6nF(562) 50V.

10. 1×3 pin XHB connector base 2.54 mm.

11. 1×2 pin XHB connector base 2.54 mm.

12. 1×7805 +V Regulator.

13. 1×100K Dual Potentiometer.

14. 2×1uF capacitor 50V.

15. 2×4700uF capacitor 35V.

16. 1×47uF capacitor 50V.

17. 2×2 pin screw terminal.

18. 1×3 pin screw terminal.

19. 2×TDA7265 IC.

20. 1×GBU808 Bridge Rectifier.

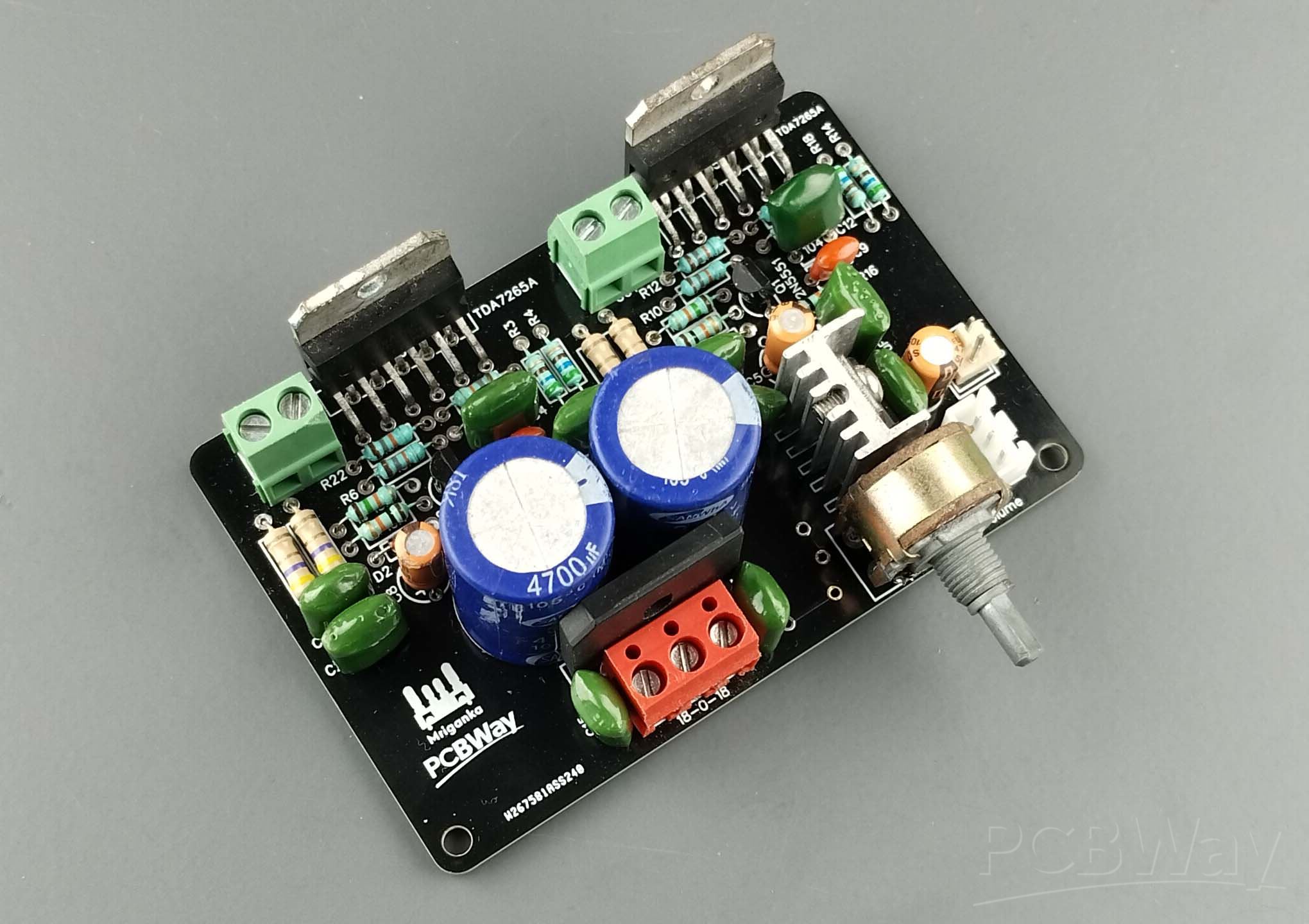

Hello Friends, In this post, I make a 50+50W dual bridge stereo amplifier using 2×TDA7265 IC, which can deliver up to 50W RMS output per channel at 8Ω ±24V. The sound quality of this amplifier is very good. All frequencies are very clear. You can make this amplifier at a very low cost, and you can get good quality sound.
