CL21A475KAQNNNE |
x 4 | |
|
|
SDCL1V3012-4R7M-REaton - Electronics Division
|
x 1 | |
|
|
MCP1642B-50I/MSMicrochip Technology
|
x 1 |
Sus Boy Gameboy Regulator
Sus Boy Gameboy Regulator

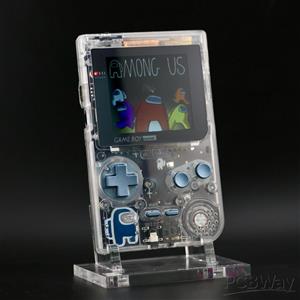

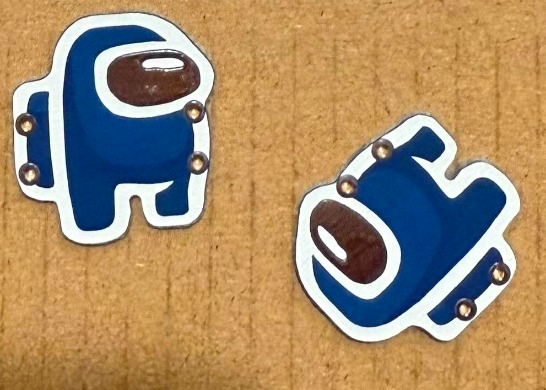

This is based off my SGR(Simple Gameboy Regulator) a very basic Gameboy Pocket/Color regulator made in KiCad. It supplies 5V and can be used with the modern display kits, but it will not work with the oem display. You can get these in any color you want, HASL will be fine since the visor should be silver, and I usually recommend 1.2mm thickness but any thickness should be fine.
Features
- Supplies 5V voltage to Gameboy Pocket/Color
- Easy to build, only needing 6 components
- Can be manufactured in any color you like to match your theme
- Shaped like a Sus Boy
Please review the Github:
Please note that I offer no warranties or support for these. Mod at your own risk!
