CL21A475KAQNNNESamsung
|
x 4 | |
|
|
SDCL1V3012-4R7M-R |
x 1 | |
|
|
MCP1642B-50I/MSMicrochip
|
x 1 |
Lank's Shield

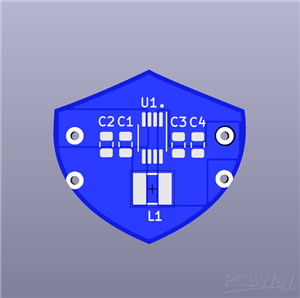

Ledger of Zorda: Lank's Shield Gameboy Regulator
This is one of my many regulators that I've made. This one is in the shape of the shield of Lank from The Ledger of Zorda These are meant to work with Gameboy Color/Pocket systems that utilize IPS display kits. This regulator only provides 5V so it cannot power an OEM display.
PLEASE NOTE:
These are meant to be made in HASL to give it the shiny metal outline of the shield. Any thickness is fine(I like 1.2mm). The Solder mask color should be Blue. Remember to choose UV printing Multi-color option: Single-sided: Bottom!
For more Information on the components required:
SGR Regulator Github
I offer no support on these. I am not responsible for any damage or issues that may occur if assembled improperly.
