Components
|
|
G-Switch GT-BTP25003-0750A-002AG-Switch
|
x 1 |
Description

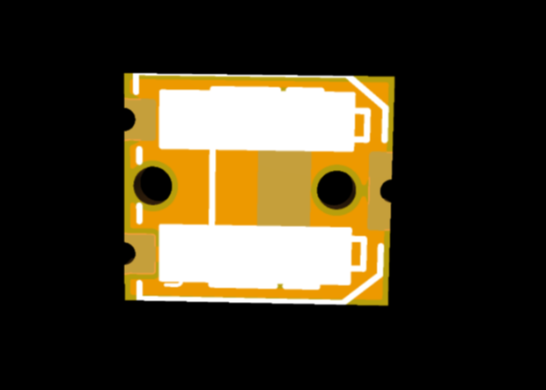

GBA SP Terminal flex pcb
A flex PCB used for replacing the GBA SP battery terminal with an aftermarket component or for fixing ripped battery terminal pads on a GBA SP.
Features
- This flex pcb can be used to support an aftermarket battery terminal if the OEM battery terminal is corroded or broken
- This flex pcb can also be used to replace the existing footprint for the OEM battery terminal if it has been ripped
Please read the Github for more information:
https://github.com/Jackv-makes/GBA_Terminal_flex/blob/main/README.md
Sep 08,2025
136 views
GBA SP Terminal flex pcb
A simple flex pcb to replace the existing GBA SP battery terminal with an aftermarket one
136
0
1
Published: Sep 08,2025
Standard PCB
Download Gerber file 1
PCBWay Donate 10% cost To Author
Only PCB
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
