Tools, APP Software Used etc.

KiCAD

Description

Super Nintendo Controller Shoulder Button Daughter Board rev2a

This is a simple daughter board designed to fit original Super Nintendo controllers and function as close to the original as possible. May fit third-party controllers as well, but the design has only been tested with the OEM controllers. No additional components are required to complete this design, but you will need to order two for each controller.

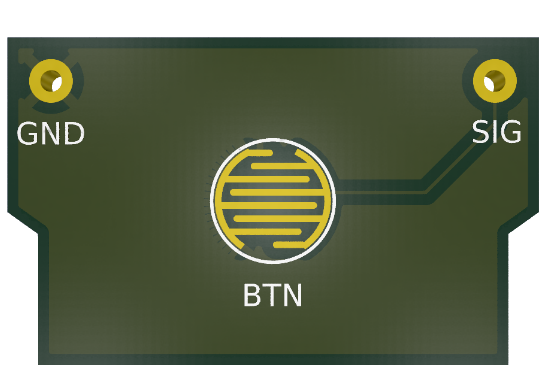

Schematic and Layout

Project Repository

https://bitbucket.org/taylormadeak/snes-shoulder-button

Download Gerbers

Jan 30,2025

339 views

Super Nintendo Controller Shoulder Button Daughter Board rev2a

A replacement shoulder button daughter board that fits original Super Nintendo controllers.

339

Published: Jan 30,2025
