Description
Strip LED Controller for ESPHome
This PCB allows controlling 7 LED strip channels up to 24V and 10A per channel. I use it to control a RGBCWWW color stripe and a CWWW white stripe with the same device. It also has an input for a push button.
I use it with ESPHome but any other ESP32 based firmware should work,
Code
Angelnu esphome devices
https://github.com/angelnu/esphome/tree/master/devices/pcb-led_lights
Schematic and Layout
Kicad project
https://github.com/angelnu/esphome/tree/master/devices/pcb-led_lights/kicad/pcb-led-lights
CAD-Custom parts and enclosures

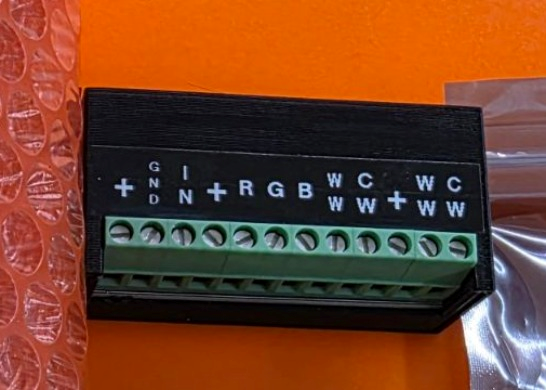

FreeCAD 3D printed enclosure
https://github.com/angelnu/esphome/tree/master/devices/pcb-led_lights/freecad
Nov 09,2025
127 views

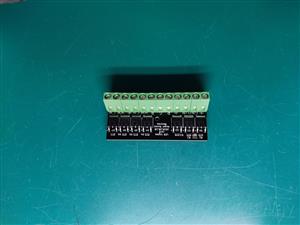

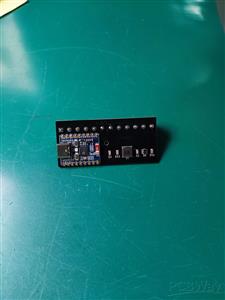

Strip LED Controller for ESPHome
2 Layers PCB 28.1 x 61.1 mm FR-4, 1.6 mm, 1, HASL with lead, Black Solder Mask, White silkscreen
Compact LED Controller with 7x channels of 10A using open firmware (ESPHome) and 3D printed enclosure.
127
0
0
Published: Nov 09,2025
Standard PCB
Download Gerber file 0
BOM(Bill of materials)
Centroid file
PCBWay Donate 10% cost To Author
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
