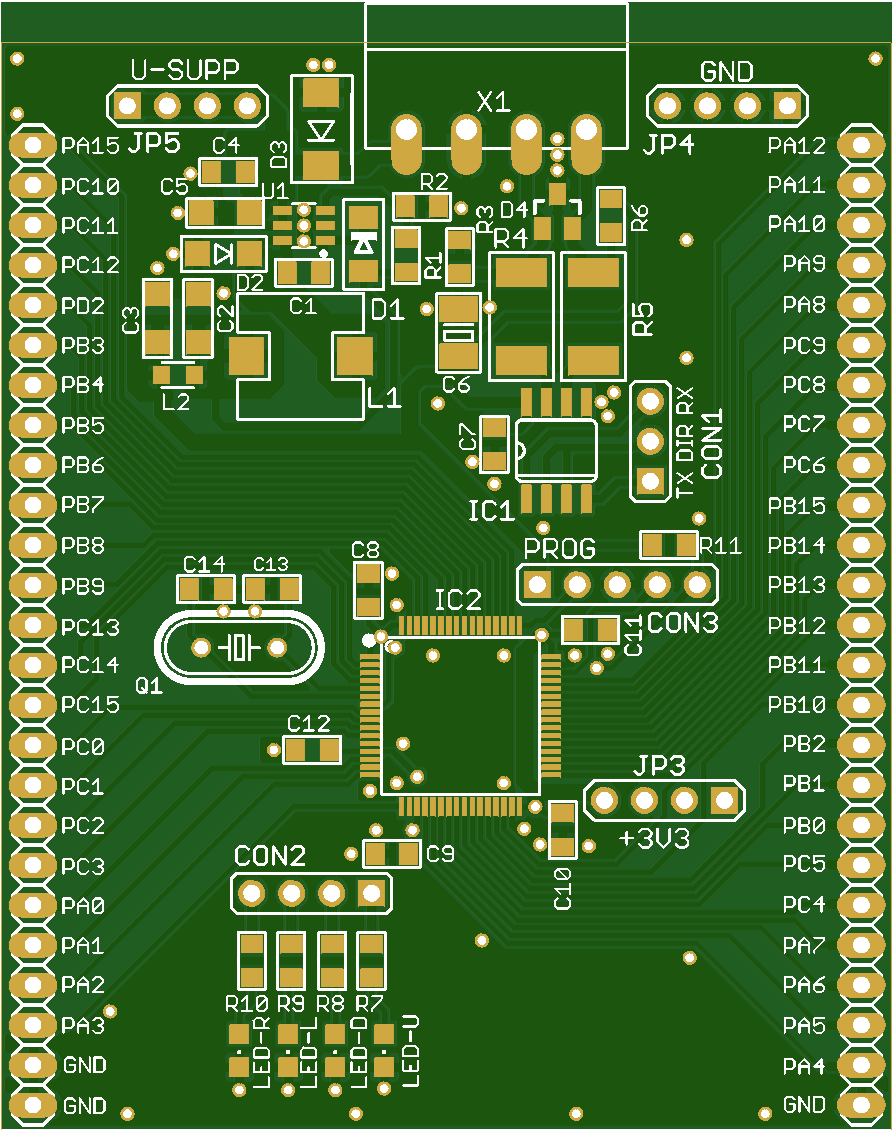

STM32F030RC development board

2 Layers PCB 69 x 56.5 mm FR-4, 1.2 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
