SOJ-26 to DIP-20 Adapter for DRAM
SOJ-26 to DIP-20 Adapter for DRAM Testing

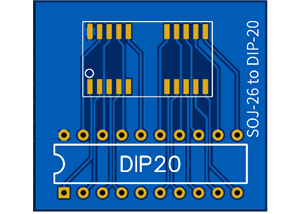

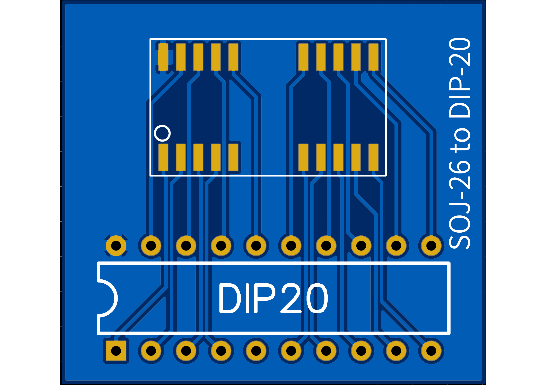

This adapter PCB allows SOJ-26 packaged DRAM chips to be tested using legacy DRAM testers or sockets designed for DIP-20 devices. It converts the SOJ-26 pinout and footprint to a standard DIP-20 format, enabling safe insertion into traditional DIP-based DRAM test equipment.
The board is intended for diagnostics, verification, and troubleshooting of DRAM memory chips in SOJ-26 packages, commonly found in vintage computer hardware, while preserving compatibility with existing DIP-20 test rigs.
Designed as a simple, passive adapter with no active components, suitable for prototyping, repair work, and retro-computing maintenance tasks.
