Description
SN76477N DEMO BOARD

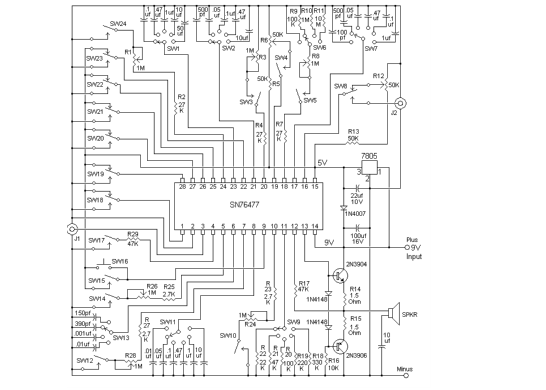

Demo board based on Wikipedia information about SN76477N IC.
Switchts and their associated components are intended be to placed on additional PCBs ( Search for SW PANEL at PCBWAY).
All rotatory switchs are RS26 1P12T to make it easier. Unused positions may cause "to air" the pin.
Obviously, they can be used the exactly switch positions for each one to avoid this.
Dec 22,2025
98 views
SN76477N DEMO BOARD
2 Layers PCB 55 x 104.8 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
TEXAS SN76477N DEMO PCB based on Wikipedia information.
SWs and potenciometers to be placed outside this PCB on a external panel.
98
0
1
Published: Dec 22,2025
Standard PCB
Download Gerber file 4
BOM(Bill of materials)
PCBWay Donate 10% cost To Author
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
