Robby the Robot Gyro Disc

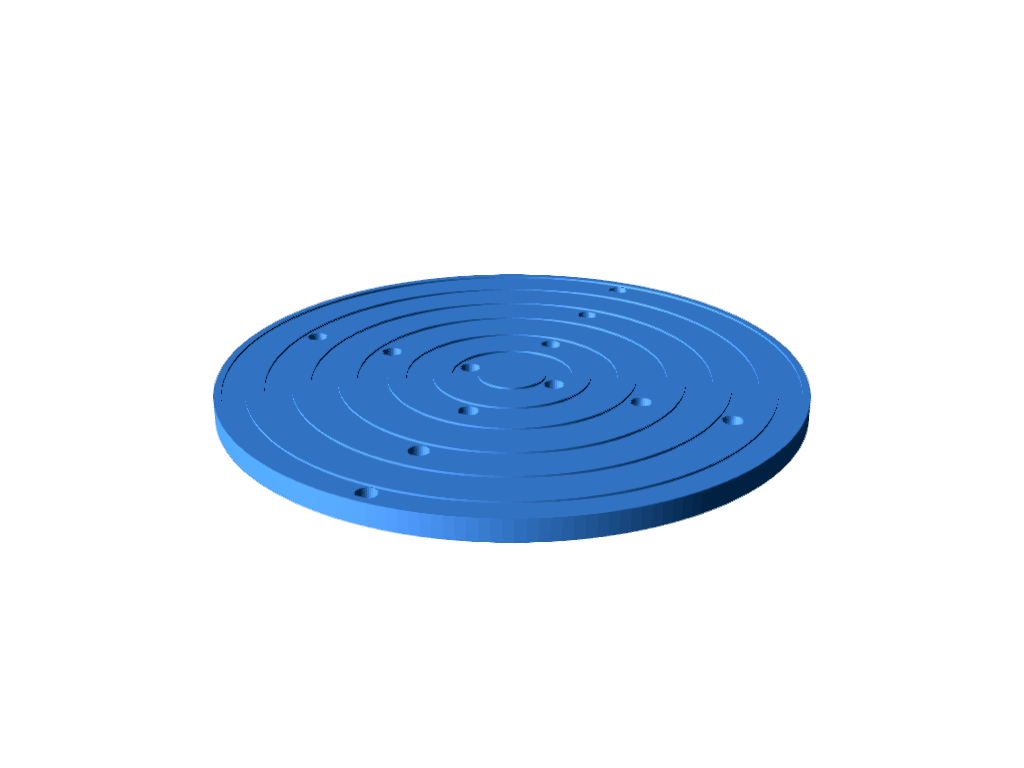

This is the clear disk (3 are required in total) that are used in Robby the Robot's head/dome gyro mechanism. A full build of this assembly is available from RobotHut on Thingiverse: https://www.thingiverse.com/thing:4580844
I designed this disk to be close to the original, which was basically an acrylic disk with carved grooves. To build a gyro disk you will need to paint the grooves and outer ring white, and also 3D-print and assemble the outer-ring parts. The files for the outer-ring can be found on my shared drive.
When ordering this part, make sure you have it printed in UTR-8100 (transparent), with a Transparent(Spray varnish) finish.
