Description

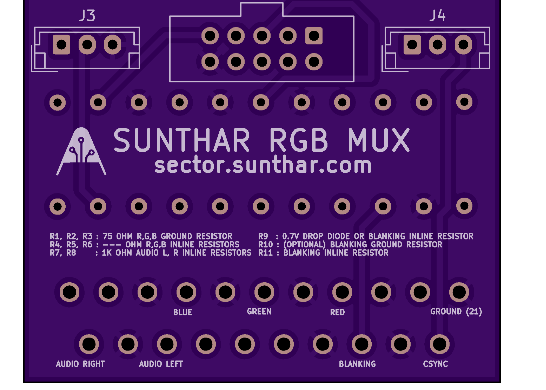

RGB mux board v1.3B
Sunthar RGB mux board v1.3B
RGB mod your CRT easily with this board. Difference between 1.3B and 1.3C is the SCART connector used. 1.3B is designed for 90 deg SCART connector
whereas 1.3C is designed for straight SCART connector
All credits to Sunthar this is not my work it's only for public share purpouses
You still can download the Gerber file in the sunthar website and buy they directly
To support him.
Jan 13,2026
56 views
RGB mux board v1.3B
Rgb Mod Board made by shuntar for assembly Rgb Scart port in retro proyects
56
0
1
Published: Jan 13,2026
Standard PCB
Download Gerber file 0
PCBWay Donate 10% cost To Author
Only PCB
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
