Description

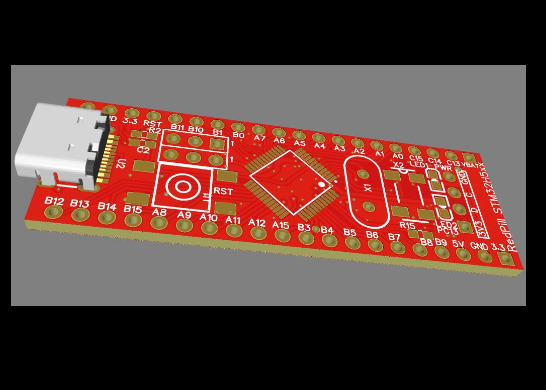

RedPill - Bluepill Clone for STM32H5xx - Development Board - Pin to Pin compatible.

BluePill Clone for the new STM32H5xx with 250 MHz, FPU ... Additional Features: USB-C, VDDA/ADC_Vref filter , Additional VRef on PB0 with LM4040 2.5V as assembly option. Reinforced VCC Supply with LM 1117 3V3

Board pinning is one to one compatible with original bluepill - WeAct and other clones are not.

You can recyle your components of old unused Bluepill Boards.

The STM32H5xx does not support PB9 and PB11. Instead it has breakout for external core voltage if internal Core Voltage is not used. - Everyone does;-)

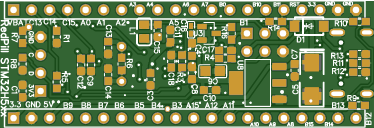

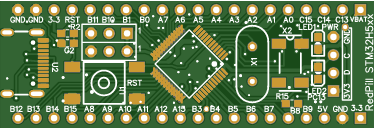

Schematic and Layout
