5

Components

	RP2040 Raspberry Pi	x 1
	DS3231M+TRL	x 1
	1977120-2 TE Connectivity ALCOSWITCH Switches	x 5
	ST7735	x 4
	WS2812B-B	x 10

Tools, APP Software Used etc.

MicroPython

Description

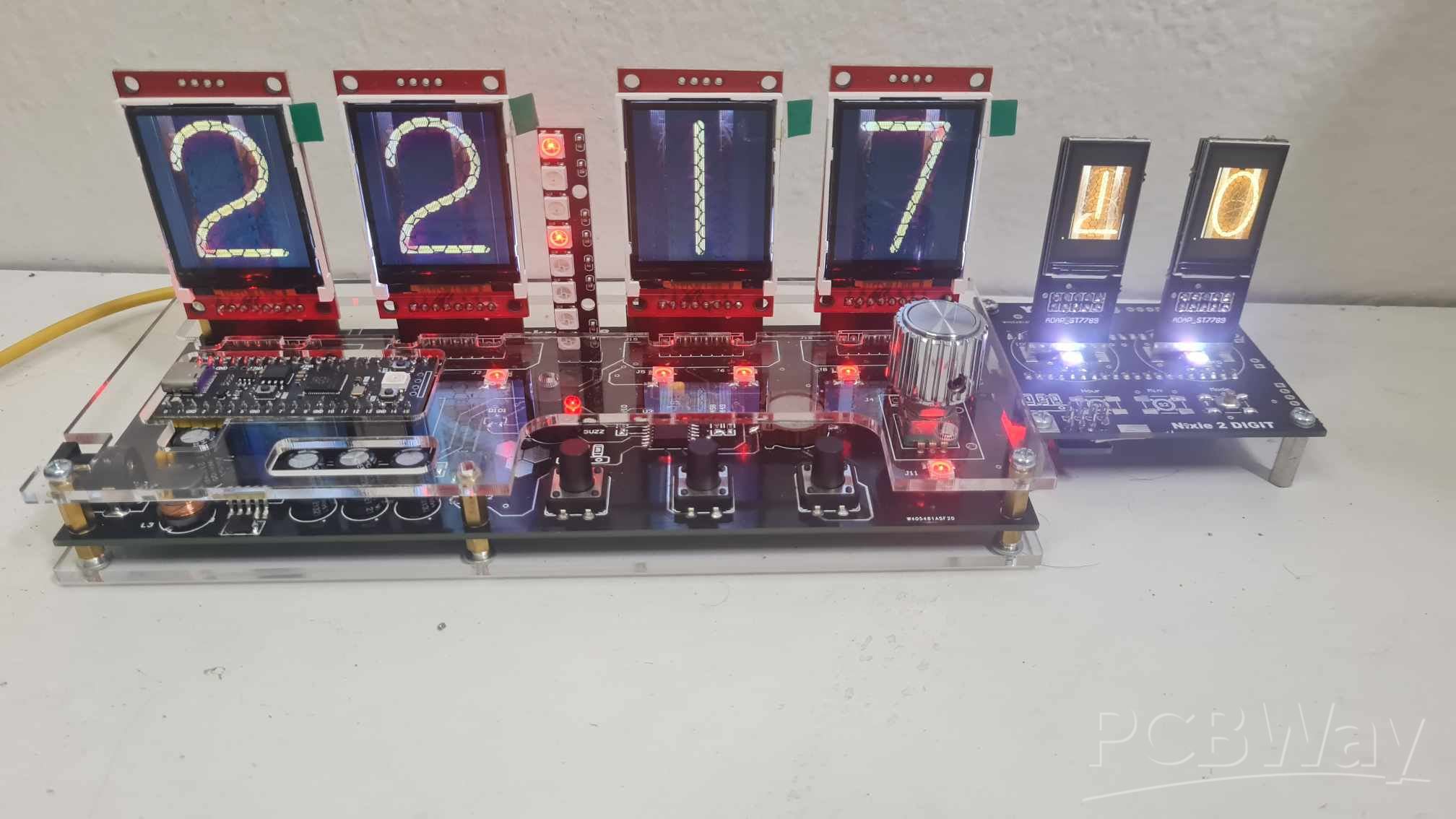

Raspberry PICO Nixie Clock Lcd

Update:

2024/11/02

I want to make a beautiful clock project using the equipment I have. ST7735 and Raspberry Pi PICO in Micropython language

https://www.youtube.com/shorts/AV2I88nhYOQ

Code: code+image file

https://github.com/YakrooThai/Nixie_Lcd_Clock

PCBWAY:

I would like to thank PCB-way for helping me to complete this project. Quality PCB made quickly, good price, fast delivery.

You can contact

E-mail: mhooyang@yahoo.com

Please follow my YouTube channel. Still a newbie to make a YouTube channel.

by just clicking on SUBSCRIBE button. Thankyou

https://www.youtube.com/@Yakroo108

Code

https://github.com/YakrooThai/Nixie_Lcd_Clock

Schematic and Layout

circuit muli LCD


Download BOM(Bill of materials)

Nov 11,2022

4,746 views

Raspberry PICO Nixie Clock Lcd

Make Nixie Clock for ST7735+Raspberry PICO

4746

8.25 (1)

Published: Nov 11,2022

Standard PCB

BOM(Bill of materials)

PCBWay Donate 10% cost To Author

File Last Updated: 2023/08/28 (GMT+8)

File update record

2023-08-2819:58:20

Gerber file is updated.

2022-11-2923:07:09

Parts List (BOM) is updated.

2022-11-2814:30:59

Gerber file is updated.

Only PCB
