Rackmount Lenovo M920q Shelf + Panel

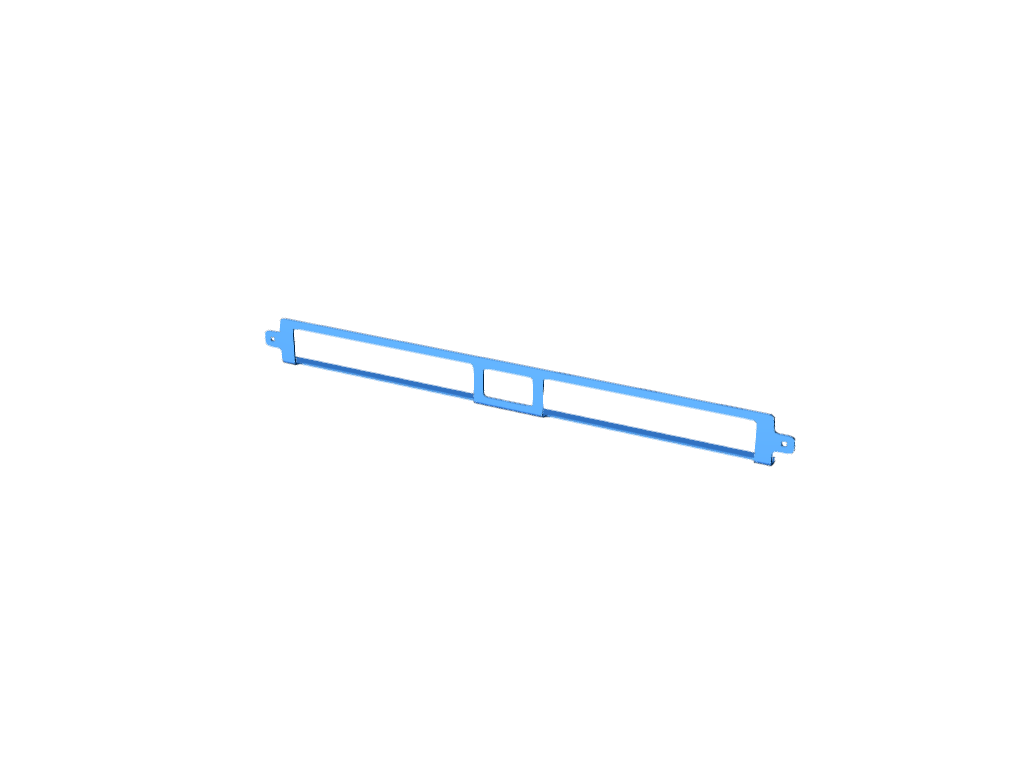

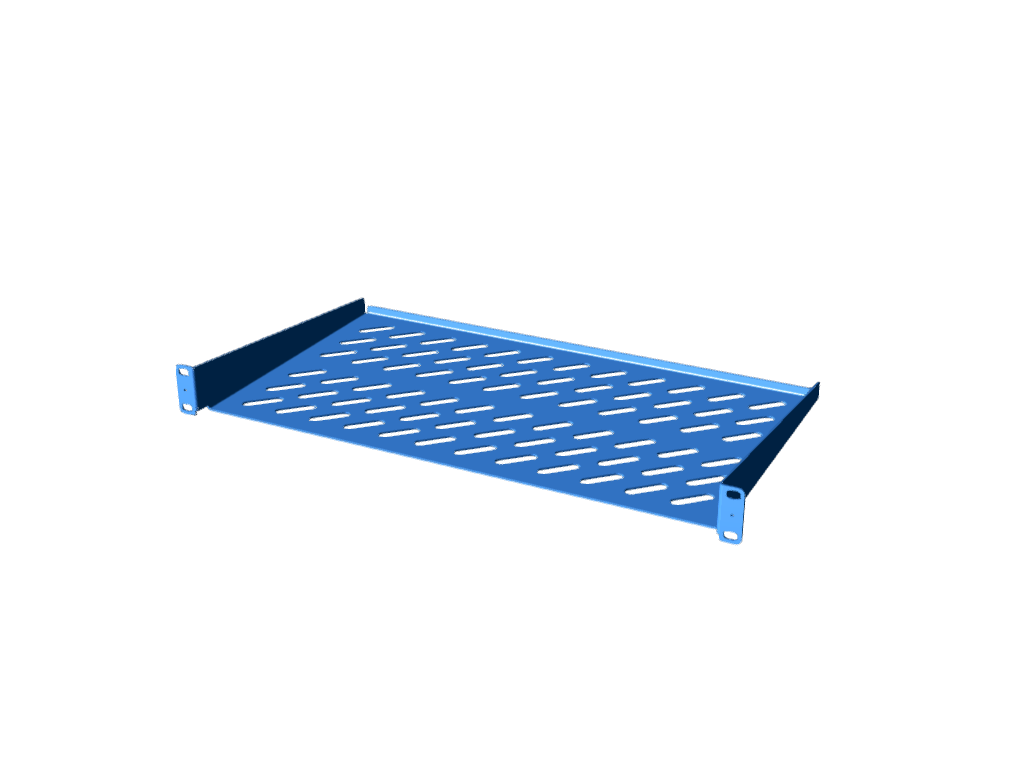

This is the 1U front panel and shelf for a 2‑piece server-rack shelf system designed to hold two Lenovo ThinkCentre M920q.
Intended fabrication
- Sheet metal front panel (recommended: steel; finish to taste)
- Designed to attach to the shelf using small circular standoffs/spacers and thumb screws
Assembly / mounting
- The front panel mounts to the shelf via standoffs on the shelf and is secured with a thumb screw for easy removal.
- The ventilation hole pattern also doubles as a mounting interface for an optional 3D‑printed bracket (not included) to help secure/locate the PCs or cables.
Notes
- THIS DESIGN HAS NOT BEEN FULLY TESTED TO ENSURE PROPER FITTING YET
