Description

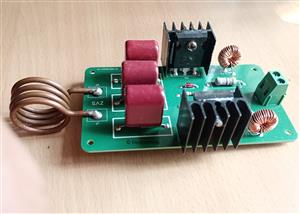

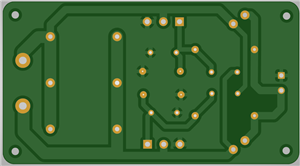

Powerful ZVS Driver

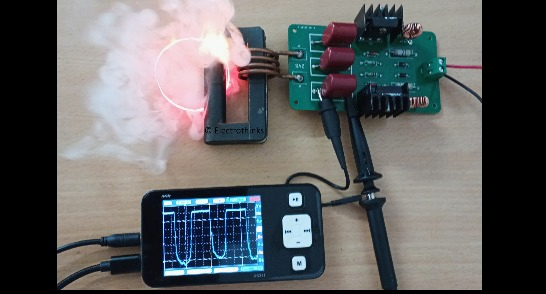

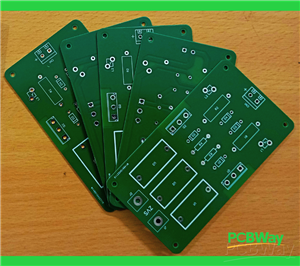

A Zero Voltage Switching (ZVS) circuit is a popular device among electronics hobbyists for creating high voltages, generating arcs, transmitting power wirelessly, and performing induction heating, all in one circuit. This driver circuit is cost-effective, easy to make, and power-efficient.

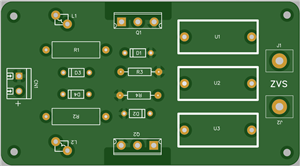

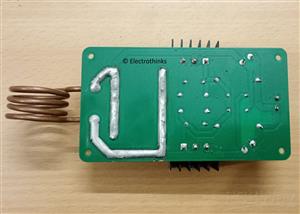

Component List:
- Q1, Q2: IRFP250 N-Channel Power MOSFET ...............................x2
- D1, D2: 1N4744 Zener Diode .........................................................x2
- D3, D4: UF4007 1000V 1 A Ultra-Fast Recovery Diode .................x2
- R1, R2: 10k 250mW Resistor .........................................................x2
- R3, R4: 470 Ohm 2W Resistor .......................................................x2
- L1, L2: 100uH 5A Toridal Inductor ..................................................x2
- L3: 2-4mm 1uH Air Core Inductor ...................................................x1
- C1: 0.33uF 600V Polyester Film Capacitor (Parallel) .....................x3
Jun 15,2025
400 views
Powerful ZVS Driver
ZVS Driver for creating high voltages, generating arcs, transmitting power wirelessly, and performing induction heating.
