Polaroid SX70 Body Flex

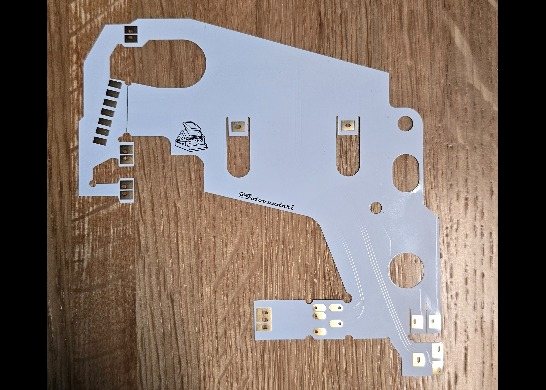

This is a replacement for the later style Polaroid SX70 Body Flex. It is designed to be used with the DIP8 style (either original or my new design) motor chip. It will work with model 1 and alpha style motors (both connectors are on the pcb).
It can be used on Model 1's but you will need to jumper the circular motor control chip connectors to the appropriate pads on the flex pcb if not upgrading the motor chip.
When bending the PCB around the camera body do not make hard creased folds or you may risk breaking the copper..
Important PCB parameters:
- PCB thickness = 0.12mm
- Layers = 2
- Copper weight = 0.5oz
Polaroid SX70 Body Flex
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
PCBWay is not responsible
for issues caused by unsuitable parameter selections.
For more important ordering information, please refer to
