Pocket Reform Backplate

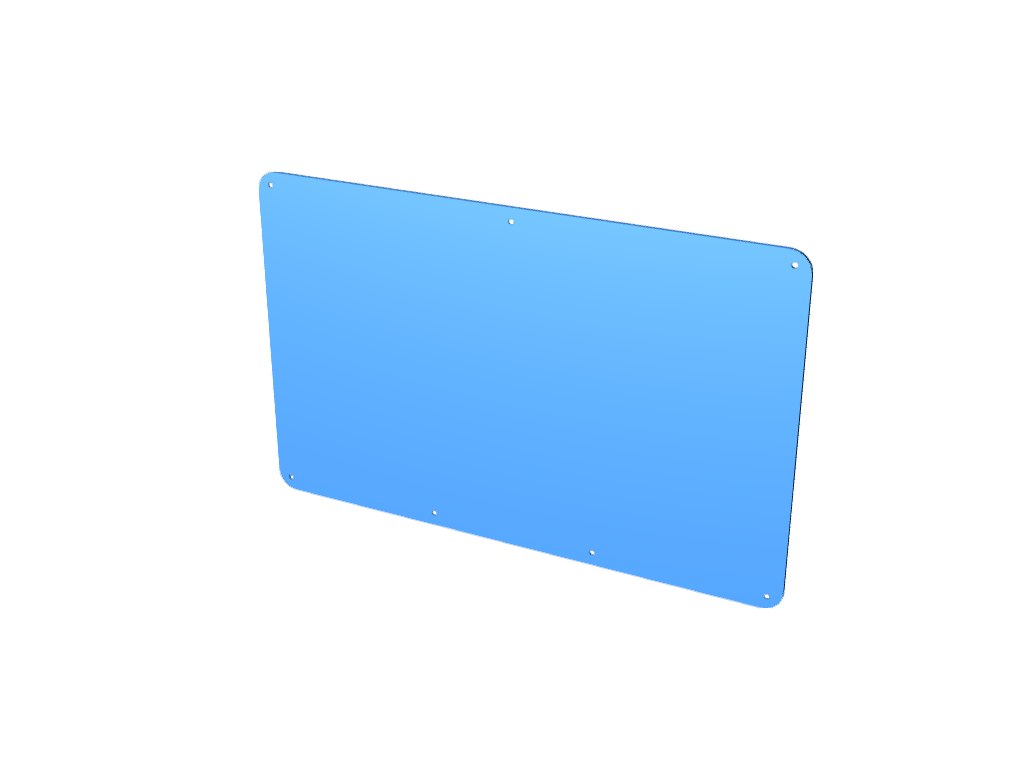

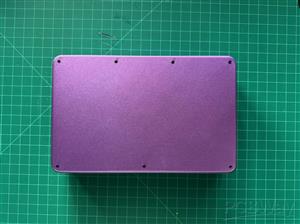

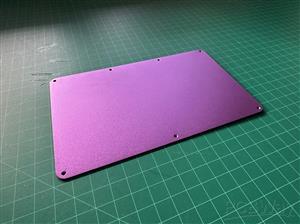

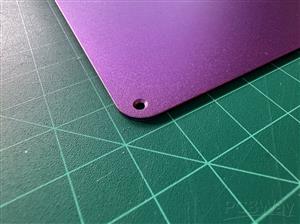

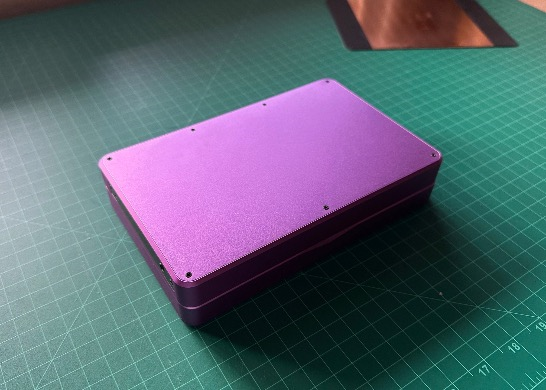

Replacement aluminum backplate for the existing PCB-based one on the MNT Pocket Reform. In a few tests, we've found this approach to drop the operating temperature by about 30C and prevent thermal throttling which should lead to about a 25% performance improvement with the IMX8MP module.
This is based the amazing work by user pandora over on the MNT forum.
