2

Components

	CL10B104KA8NNNL Samsung Electro-Mechanics	x 1
	ERJ-PA3J152V Panasonic	x 1
	SDR03EZPJ222 ROHM Semiconductor	x 1
	PIC12F508-I/SN Microchip Technology	x 1

Tools, APP Software Used etc.

KiCad 9.0

Description

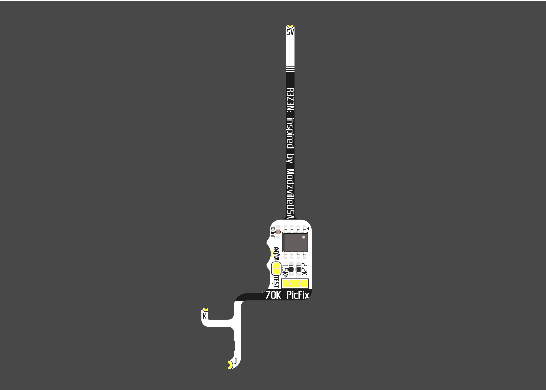

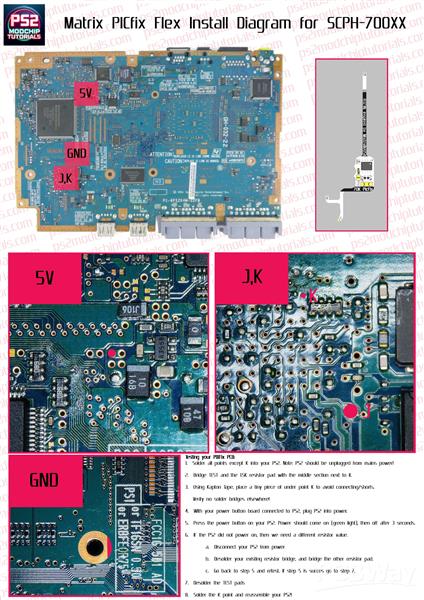

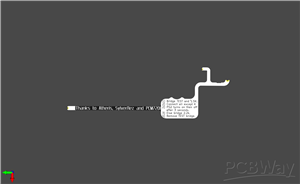

PS2 Matrix Pic Fix Flex quick solder board SCPH-7000XX

What is it?

This a a microcontroller to save your PS2 laser on when the mechacon crashes, packaged with a custom flex PCB for quick soldered installs!

Why did you make it?

The lasers in PS2 models SCPH-390XX, SCPH-500XX and SCPH-700XX were known to fail when the mechacon crashed, which in turned burned up the laser if it crashed while reading. Designed for a quick and easy install so your wiring always looks clean!

When the mechacon crashes this shuts down the ps2 instead of burning up the laser. Find out more info here: https://ps2modchiptutorials.com/misc/picfix/

What makes it special?

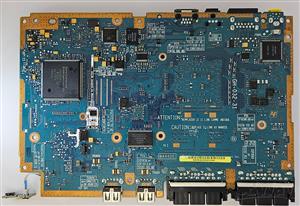

No need to run multiple wires that look ugly, especially if interfering with your modchip install! This does not hinder the usual or alt points used for a SCPH-700XX modchip install. Even if you don't have a modchip, this is needed. This does not interfere with any CDVD, BOOTROM or alt BOOTROM solder points if soldering in a region free mod.

Licensed under the TAPR Open Hardware License (www.tapr.org/OHL)

©R3Z3N/Saildot4k 2025

Code

PS2 Modchip Tutorials Matrix Picfix documentation

https://ps2modchiptutorials.com/misc/picfix/

Download Gerbers Download BOM(Bill of materials)

Apr 22,2025

1,312 views

PS2 Matrix Pic Fix Flex quick solder board SCPH-7000XX

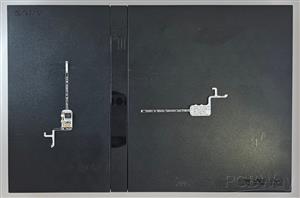

PS2 Flex cable for Matrix PICFIX in SCPH-700XX Slims. This protects your laser upon a mechacon crash.
