Description
PPS Watch - The Most Accurate Watch That Doesn’t Tell Time

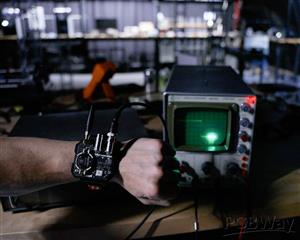

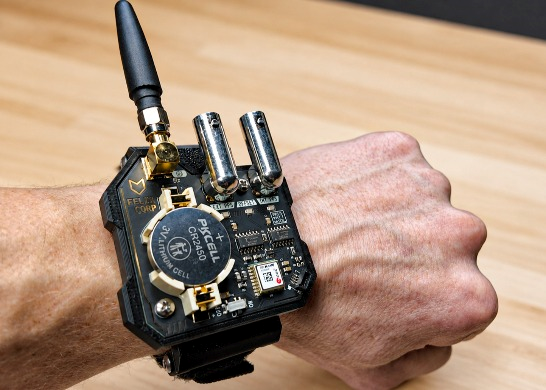

The PPS Watch is a wearable GPS timing reference disguised as the world’s least useful watch. It doesn’t tell time, but it outputs an accurate one-pulse-per-second signal through BNC, accepts an external PPS input, and uses LEDs to show GPS PPS, input PPS, and sync/phase comparison. Two of them can stay synchronized anywhere in the world with a clear view of the sky.
The project is fully open source, with KiCad files, CAD files, firmware-free hardware design notes, and assembly info available on GitHub:
https://github.com/idlehandsdev/pps-watch
A DigiKey BOM is also included so the parts can be ordered more easily.
CAD-Custom parts and enclosures
Watch Mount for PCB
pcb_frame_mount.stl
Watch Band Attachment
watch_band_mount.stl
Watch Frame Fusion 360 File
watch_frame.f3d
Jul 04,2026
88 views
PPS Watch - The Most Accurate Watch That Doesn’t Tell Time
2 Layers PCB 56.1 x 56.144 mm FR-4, 1.6 mm, 1, Immersion gold, Matt black Solder Mask, White silkscreen
GPS PPS watch: no time display, just precise BNC timing, sync LEDs, and open-source weirdness for your wrist.
88
0
0
Published: Jul 04,2026
Standard PCB
Download Gerber file 1
PCBWay Donate 10% cost To Author
File Last Updated: 2026/07/04 (GMT+8)
File update record
2026-07-0423:33:03
CAD or technical drawing file is updated.
Only PCB
