black PILL STM32 |
x 1 | |
|
|
74HC373 |
x 5 | |
|
|
74HC244 |
x 1 | |
|
|
GAL20V8-25QPLATTICE SEMICONDUCTOR
|
x 1 | |
|
|
hm62256alp-20 |
x 1 | |
|
|
1nF 16v |
x 1 |

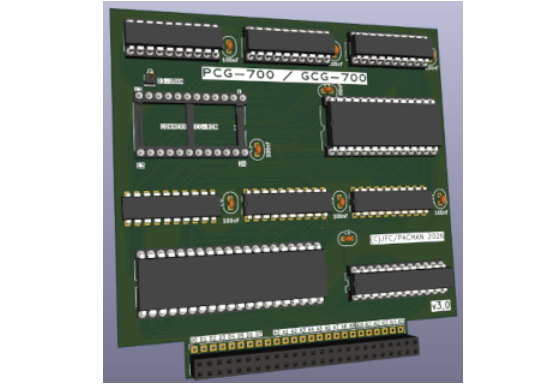

PCG-700/GCG-700 CARD V3,0
SHARP MZ-700 PCG-700 100% compatible
SHARP MZ-700 GCG-700 98% compatible (not read data) fonctions : characters tables supplement, hardware flipping, ..
This circuit allows the SHARP MZ-700's character ROM to be replaced with RAM, enabling the creation of custom characters.
It supports up to 2x128 characters in PCG-700 mode and 4x1024 in GCG-700 mode.
Games tested and working with this circuit include (20260703) : HELL DIVER, SCRAMJET, MOLE ATTACK, PCGAID, DEMO LISSAJOU (BASIC), DEMO SIN BERG (BASIC), BROADSWORD (PACMAN 2019 version), and TOMAHAWK.
PCG-700/GCG-700 CARD V3,0
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
PCBWay is not responsible
for issues caused by unsuitable parameter selections.
For more important ordering information, please refer to
Read More
Raspberry Pi 5 7 Inch Touch Screen IPS 1024x600 HD LCD HDMI-compatible Display for RPI 4B 3B+ OPI 5 AIDA64 PC Secondary Screen（Without Speaker）
BUY NOW
- Comments(1)
- Likes(0)
More by Pacman pac2man
-

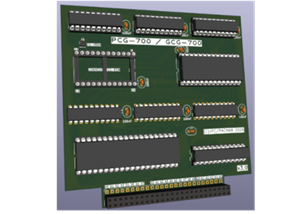

PCG-700/GCG-700 MODULE CARD V3,0
SHARP MZ-700 PCG-700 100% compatibleSHARP MZ-700 GCG-700 98% compatible (not read data) fonctions : ...
-

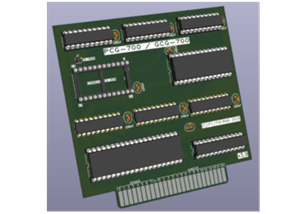

PCG-700/GCG-700 CARD V3,0
