Components
|
|
PAM8403SLKOR(萨科微)
|
x 1 | |
|
|
SCR0805F10KVO(翔胜)
|
x 2 | |
|
|
C0603X105K025TIHHEC(禾伸堂)
|
x 3 | |
|
|
C0603B106M010TIHHEC(禾伸堂)
|
x 2 | |
|
|
CC0603KRX7R9BB104YAGEO
|
x 1 | |
|
|
0603B204K160CTWalsin(华新科)
|
x 2 |
Description

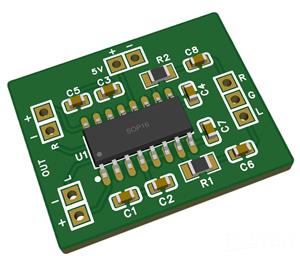

PAM8403 Stereo Audio Amplifier Module: Custom Design

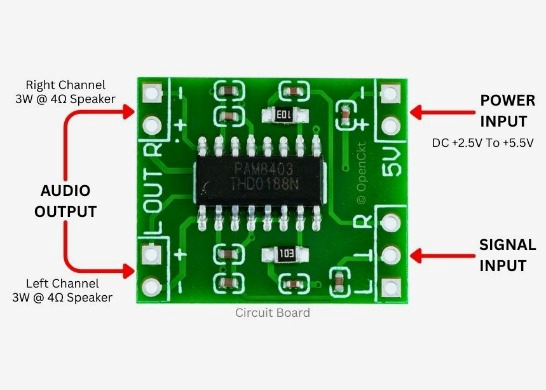

Custom design PAM8403 high-efficiency Class-D stereo audio amplifier module capable of driving 3W+3W (Left and Right) channels into 4Ω speakers with 90% efficiency. It operates on a 2.5V to 5.5V power supply. You can read the working principle of this stereo audio amplifier circuit along with its schematic in detail.
Aug 23,2025
158 views
PAM8403 Stereo Audio Amplifier Module: Custom Design
A compact high-efficiency Class-D stereo audio amplifier capable of driving 3W per channel into 4Ω speakers with 90% efficiency.
158
0
0
Published: Aug 23,2025
Standard PCB
Download Gerber file 2
PCBWay Donate 10% cost To Author
Only PCB
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-NonCommercial-ShareAlike (CC BY-NC-SA)
License.
