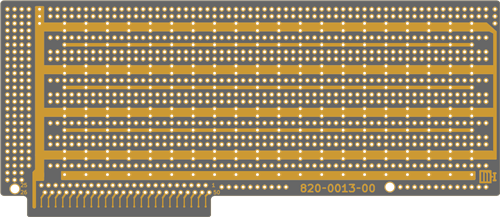

Original Apple II Hobby/Prototyping Board
A faithful reproduction of Apple's original Prototyping board for the Apple II, released in the 1970s.
Specifications at https://www.apple.asimov.net/documentation/hardware/io/Apple%20II%20Hobby%20and%20Prototyping%20Board%20Manual.pdf
A2B0001
820-0013-000
Original Apple II Hobby/Prototyping Board
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
PCBWay is not responsible
for issues caused by unsuitable parameter selections.
For more important ordering information, please refer to
Read More
