NodeMCU ESP8266 socket to WEMOS D1 mini Pro converter board

You may enounter the problem that you have a circuit with the NodeMCU ESP8266 chip.

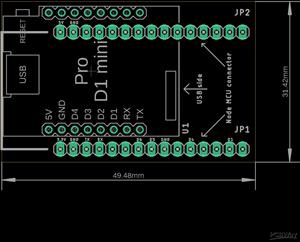

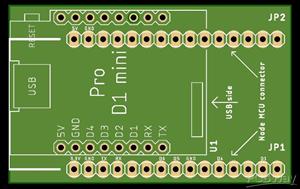

Unfortunately, this one has no possibility for connecting an external wifi antenna (except diy) - so this little circuit board gives you the possibility to put the better WEMOS D1 mini Pro chip onto the same socket (which normally has a totally different size).

Jun 20,2020

1,854 views

NodeMCU ESP8266 socket to WEMOS D1 mini Pro converter board

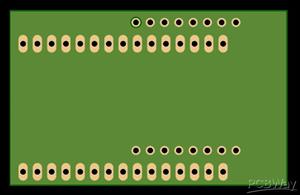

2 Layers PCB 31 x 49 mm FR-4, 1.6 mm, 1, HASL lead free, Green Solder Mask, White silkscreen

You can use the WEMOS D1 mini Pro with possibility to connect an external wifi antenna to a NodeMCU ESP8266 socket.
