NZXT H2 Flow x Arctic Liquid Freezer AIO Bracket

This bracket is made to fit the Arctic Liquid Freezer iii 280 AIO in NZXT's new H2 Flow Case. It simply replaces the original bracket thats held on by 4 screws. 4 x 3.5mm thread (Commonly used for PSU's) will be needed.

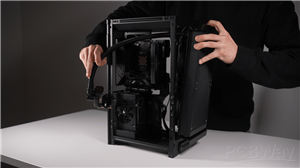

Featured in my video 'I Fixed NZXT's H2 Flow Case..' to cool down my 9950X3D CPU.

Youtube Video: https://youtu.be/g-GRGVMzfVo

CAD-Custom parts and enclosures

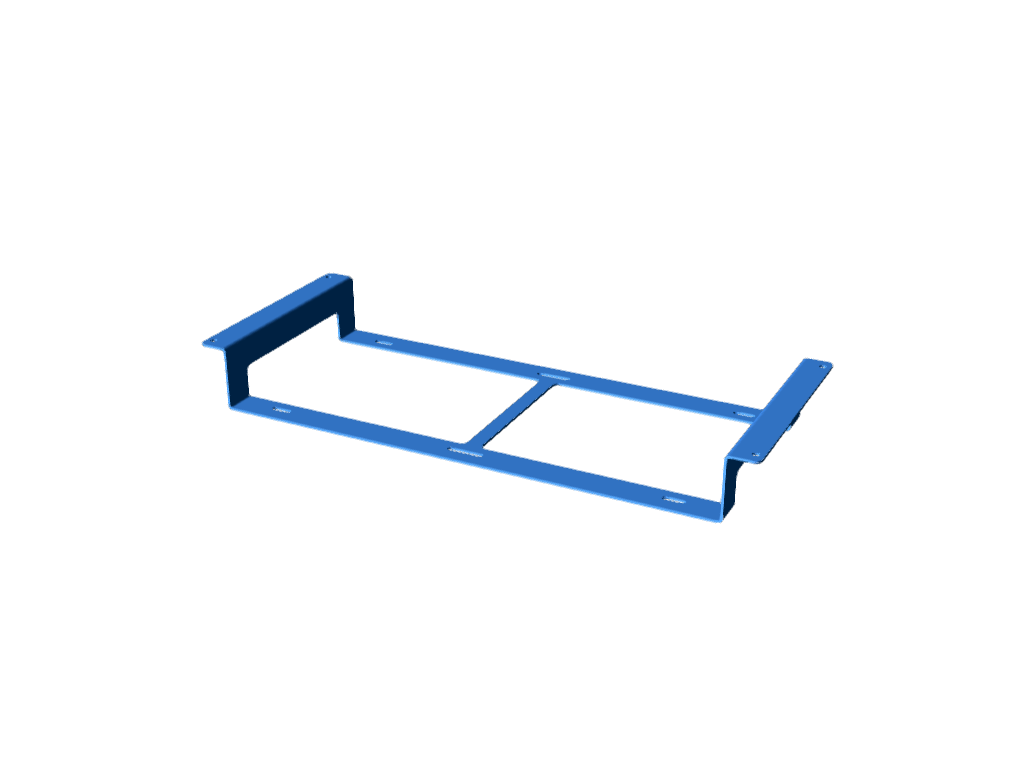

C-1F4W1099420A_280mm Rad Bracket

C-1F4W1099420A_280mm Rad Bracket.step

280mm Rad Bracket.pdf


Jul 19,2026

298 views

NZXT H2 Flow x Arctic Liquid Freezer AIO Bracket

0 Layers PCB 0 x 0 mm , 0 mm, 0, , Solder Mask, silkscreen

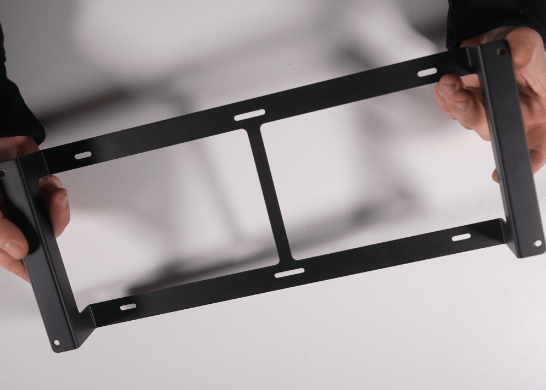

A simple bracket that allows you to fit an AIO up to 38mm thick (Arctic Liquid Freezer iii 280) in the NZXT H2 Flow Case.
