Description
MintZ80_r5

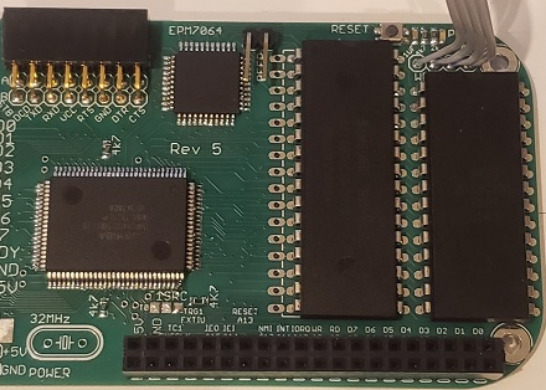

Z80 computer which fits into Altoids box. This main board with Z85C015 chip which contains Z80 CPU, CTC, SIO and PIO 256K RAM,64K EEPROM. Daughter board contains CF card slot and YMZ384 PSG chip plus a configuration switch. This project is ailed to eventually run CP/M OS. For now it runs monitor program and Altair Basic. More details at my GitHub repo https://github.com/arturs-lab/mintz80_main_pcb
Jan 01,2026
63 views
MintZ80_r5
4 Layers PCB 55 x 89.9 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
Z80 computer which fits into Altoids box. This main board with Z85C015 chip which contains Z80 CPU, CTC, SIO and PIO 256K RAM,64K EEPROM
63
0
3
Published: Jan 01,2026
Standard PCB
BOM(Bill of materials)
PCBWay Donate 10% cost To Author
File Last Updated: 2026/01/05 (GMT+8)
File update record
2026-01-0511:59:55
Parts List (BOM) is updated.
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
