I have created a unique electronic circuit designed to add a special and distinctive touch to your Christmas celebrations. Developed with precision using the open-source tool KiCad, this project incorporates high-quality SMD components. At its core, a 0603-sized LED emits a warm, festive glow, paired with an 0805 resistor to optimize brightness while minimizing power consumption.

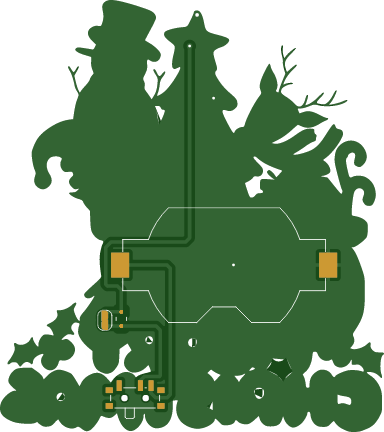

The design features a CR2032 battery holder, providing a compact and wireless power solution, perfect for portable and stylish applications. A PCM12SMTR switch is also included, allowing for easy on/off control and helping to extend battery life.

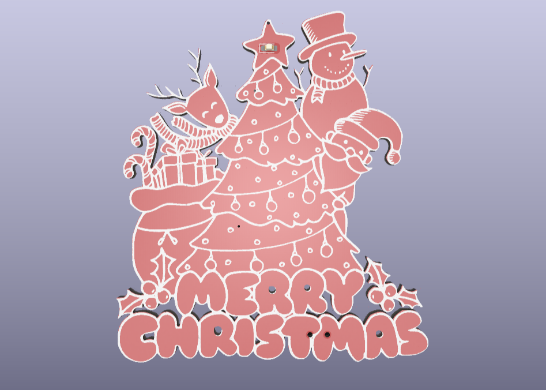

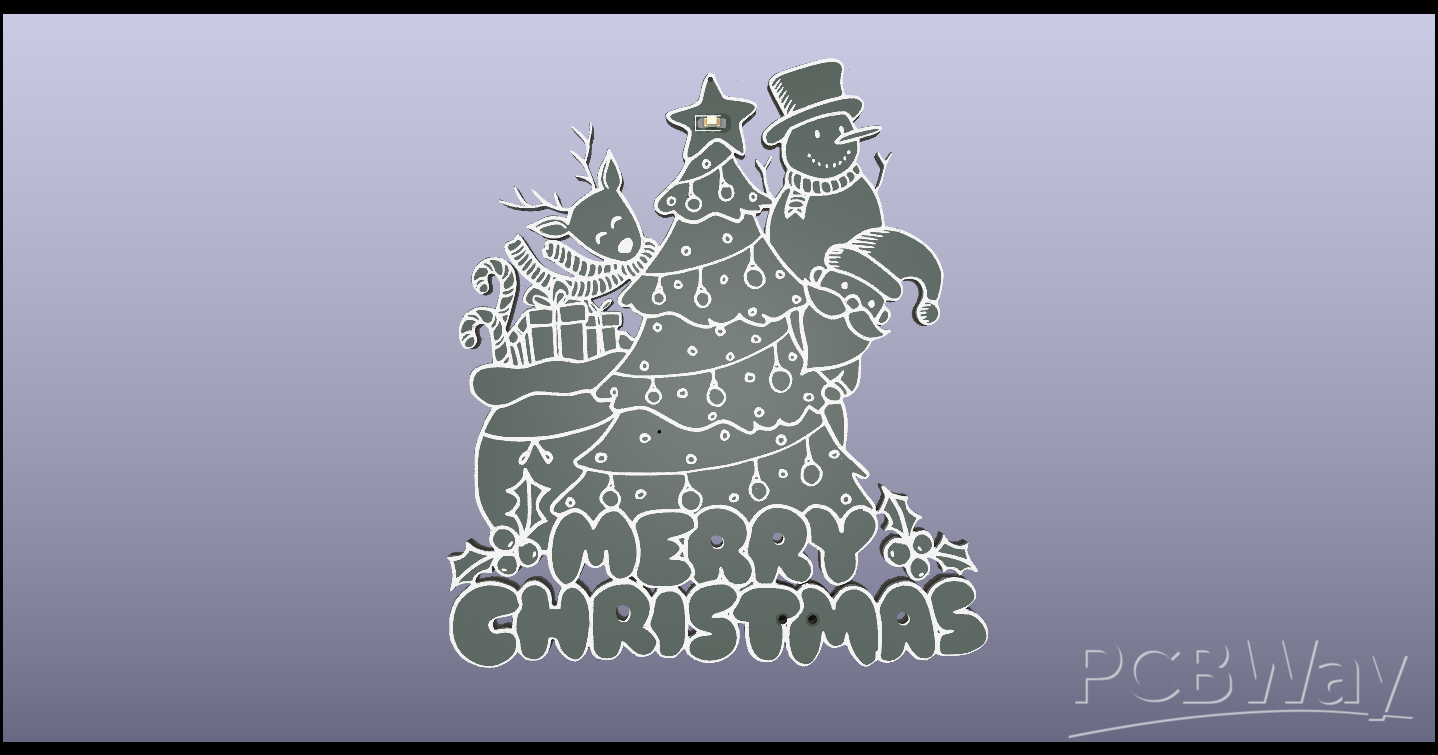

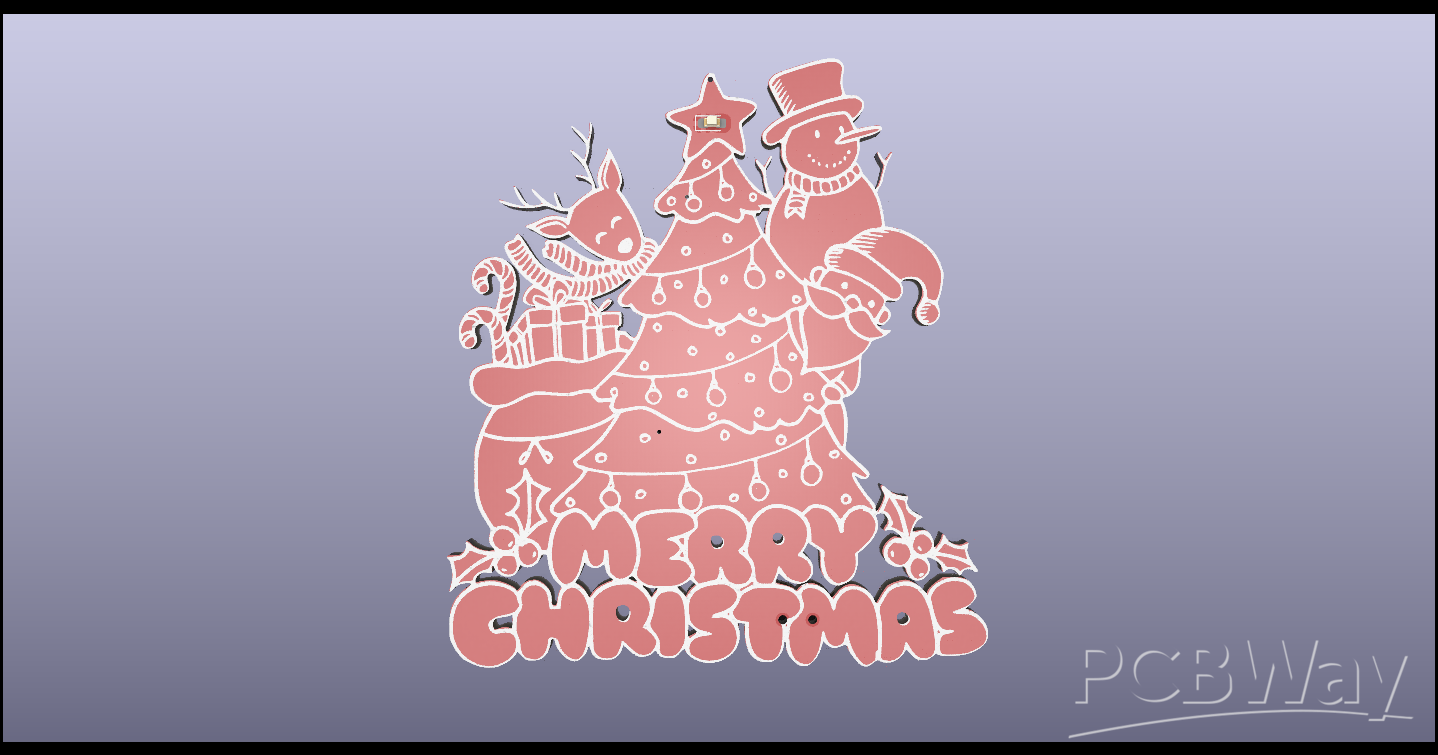

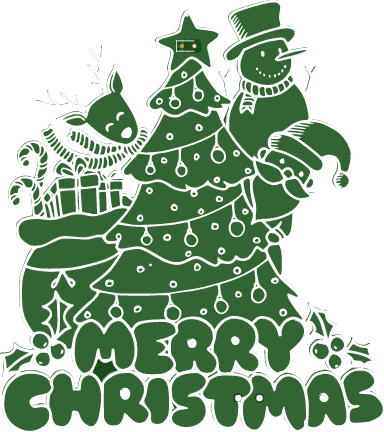

This Christmas-themed printed circuit board beautifully blends holiday spirit with technology and creativity, showcasing an elegant LED arrangement. It’s an ideal addition to your holiday decor or a thoughtful, innovative gift to surprise your loved ones with festive cheer.

Dimensions: 60.98 mm (height) x 53.99 mm (width).

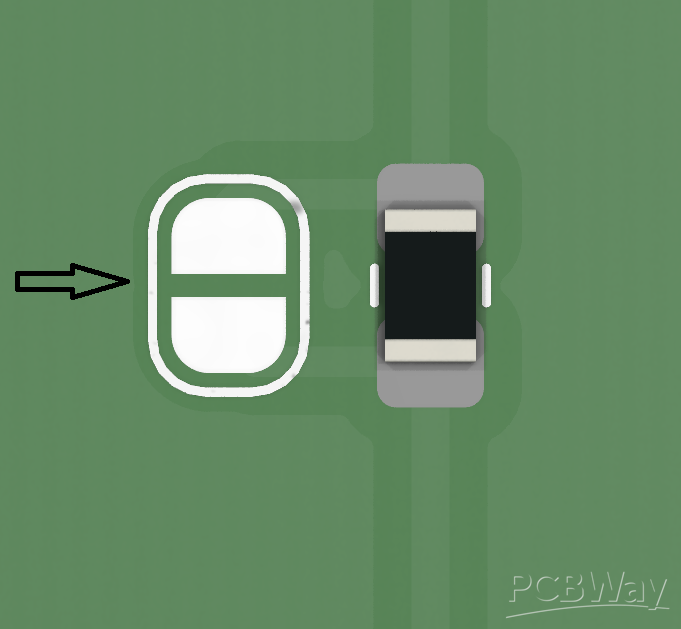

The PCB design includes 50Ω resistors as standard; however, this value may vary depending on the colour of LED used. In situations where a resistor is not required, the PCB has been designed with optional solder jumpers to facilitate direct connection. It is recommended to consider their use according to the specific needs of the project.
