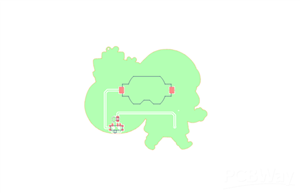

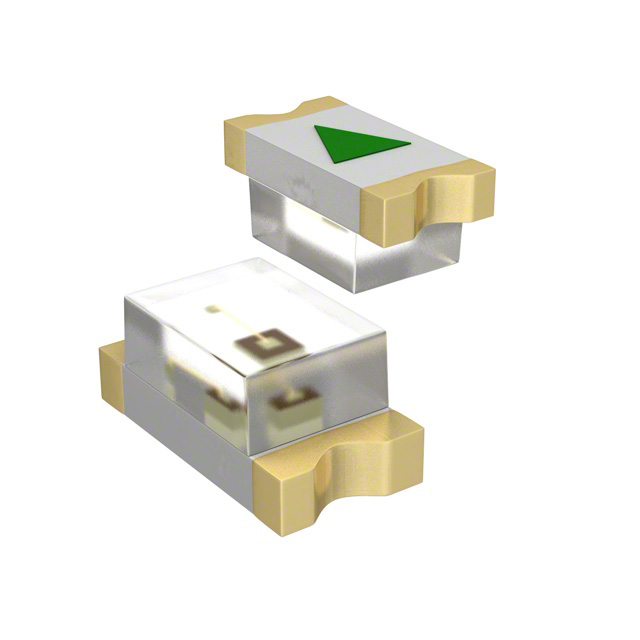

I have designed a unique electronic circuit that brings a special and distinctive touch to your Christmas celebrations. This project, carefully developed with the open source tool KiCad, uses high quality SMD components. It features a 0603 size LED that emits a warm festive light, accompanied by a 0805 resistor that optimizes brightness and reduces power consumption.

The design includes a CR2032 battery holder, providing a compact, cordless power source, ideal for portable and aesthetic use. It also features a PCM12SMTR switch that makes it easy to turn the circuit on and off, helping to extend battery life.

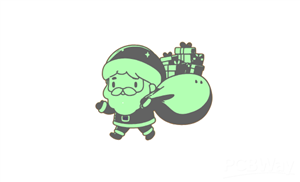

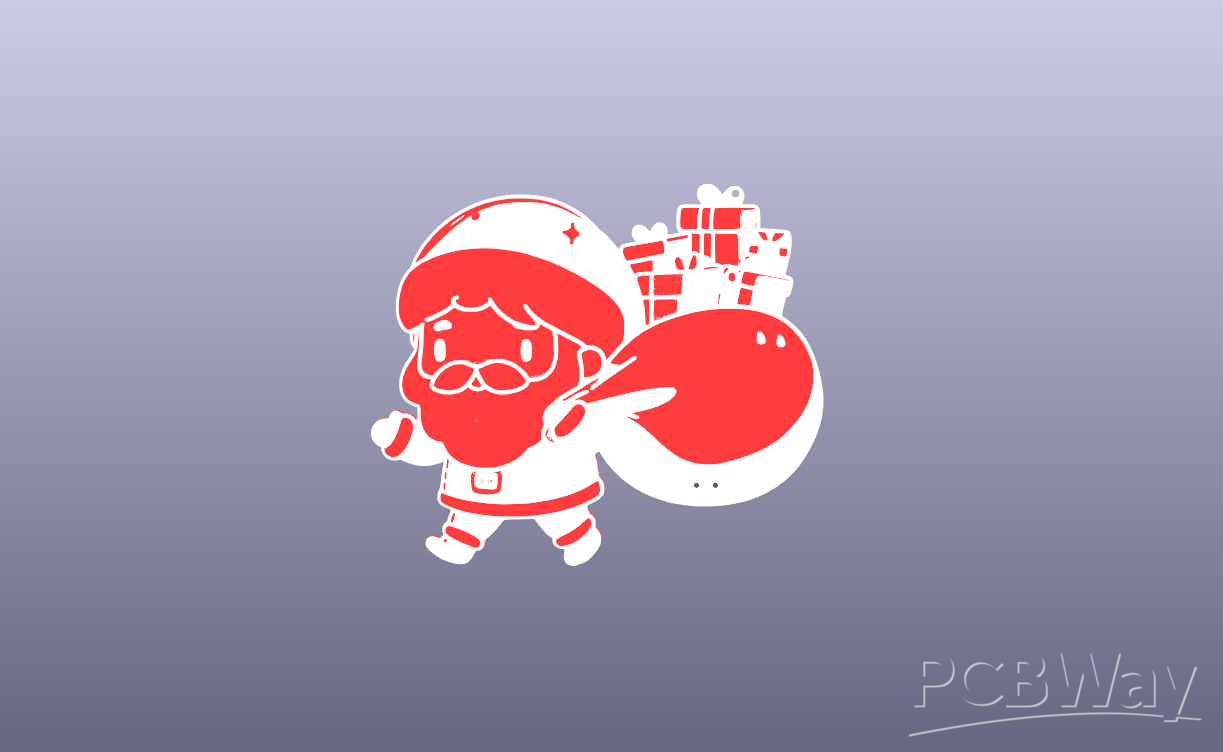

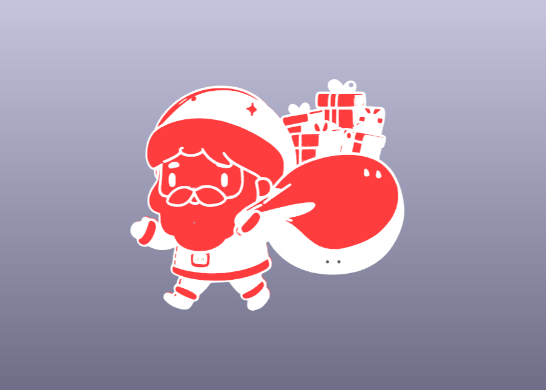

This Christmas-themed printed circuit board not only captures the essence of the holidays, but combines technology and creativity with an elegant LED layout. It's perfect for enhancing your holiday decor or surprising your loved ones with an innovative gift full of festive spirit.

Dimensions: 60.56 mm (height) x 71.73 mm (width).

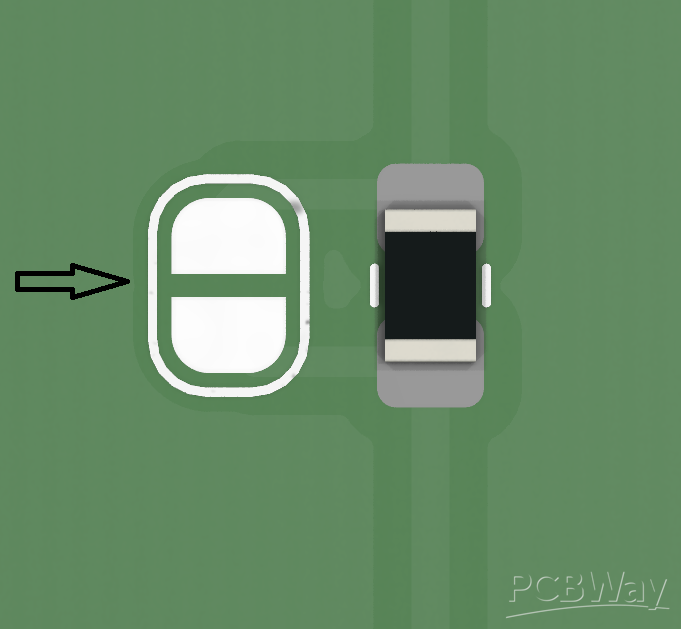

The PCB design includes 50Ω resistors as standard; however, this value may vary depending on the colour of LED used. In situations where a resistor is not required, the PCB has been designed with optional solder jumpers to facilitate direct connection. It is recommended to consider their use according to the specific needs of the project.
