MegaWang 2000 Turbo Edition - 43 - New video board
Modular audio and video hardware for retro machines like the Commodore 64. Designed to use 74 series TTL through hole ICs available back in the 1980s, something you can solder at home from parts or order ready assembled.
Jul 12,2025
278 views
MegaWang 2000 Turbo Edition - 43 - New video board

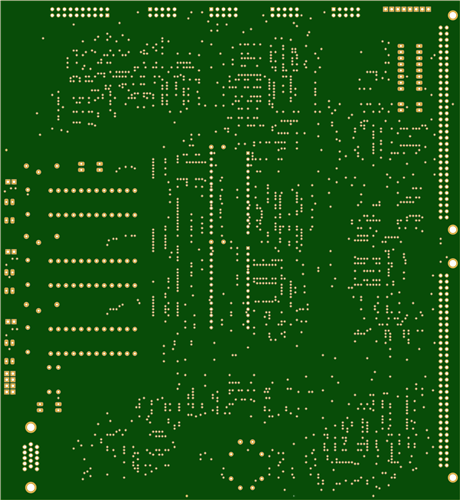

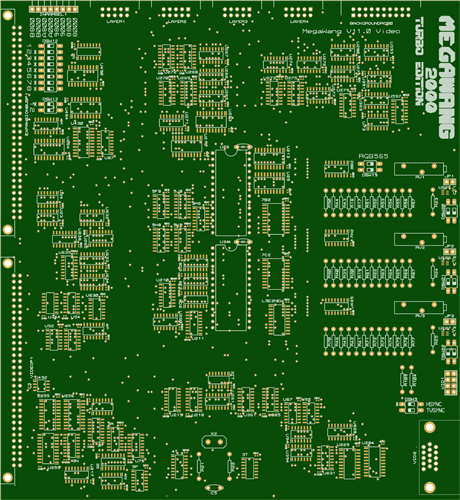

8 Layers PCB 207.4 x 191 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen

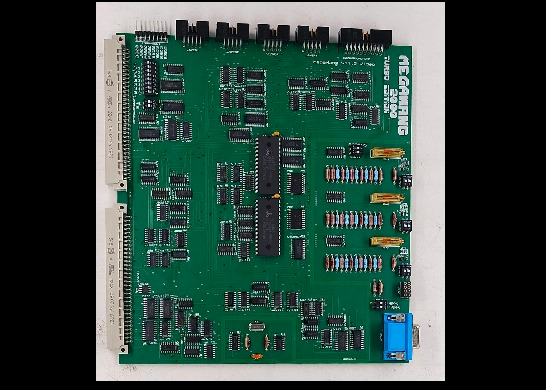

Video board for Commodore 64. Expanded 1024 colours on screen without raster effects, video RGB filtering.
