Commodore 64 MegaCart V2 2MB
A Commodore 64 flash based cartridge 2MB, organised as 256 x 8KB banks of memory.
The Commodore 64 can erase all or part of the flash and write data. The CartTool V2 can also quickly erase and write data: https://www.pcbway.com/project/shareproject/C64_Cartridge_programming_tool_V2_4b4c9cff.html
Code
https://github.com/martinpiper/C64MegaCart
Sep 09,2025
312 views
Commodore 64 MegaCart V2 2MB

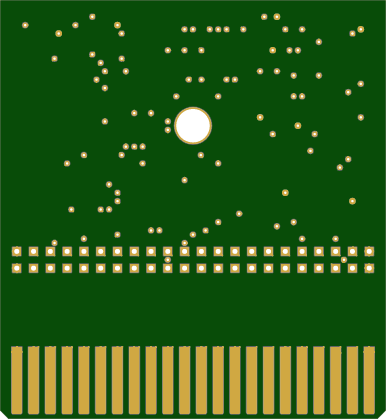

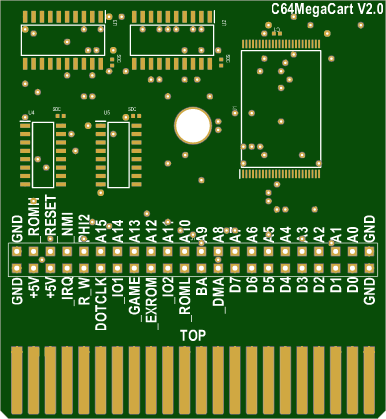

2 Layers PCB 63.5 x 58.4 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
A Commodore 64 flash based cartridge 2MB, organised as 256 x 8KB banks of memory.
