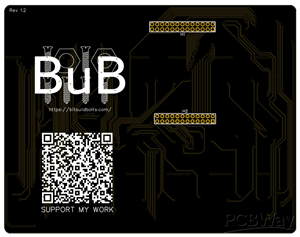

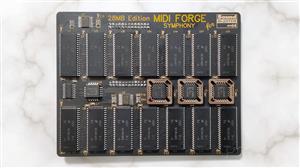

MIDI FORGE Symphony - AWE64 Memory Expansion Board
Upgrade your vintage soundcard with a whopping 28MB of memory to store sound fonts in DOS and Windows.
The MIDI FORGE Symphony is a replica of the original memory board sold by Creative Technology back in 1996/97.

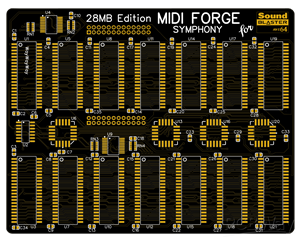

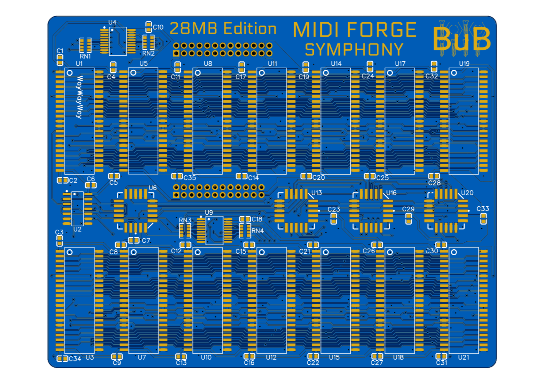

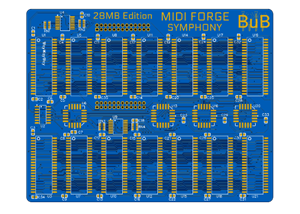

EDIT: Please note that the Creative Sound Blaster and AWE64 logo has been removed in the top right corner.
My channel logo took its place instead.
Cheers,
BitsUndBolts
May 20,2025
335 views
MIDI FORGE Symphony - AWE64 Memory Expansion Board
2 Layers PCB 90.8 x 115.8 mm FR-4, 1.6 mm, 1, Immersion gold, Matt black Solder Mask, Yellow silkscreen

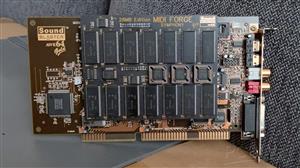

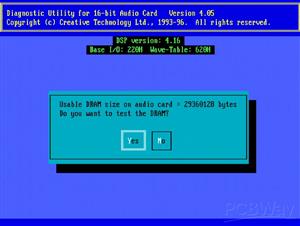

Up to 28MB memory expansion for your Creative Sound Blaster AWE64 to load sound fonts in DOS and Windows.
335
2
0
Published: May 20,2025
Standard PCB
Download Gerber file 13
BOM(Bill of materials)
PCBWay Donate 10% cost To Author
File Last Updated: 2025/12/04 (GMT+8)
File update record
2025-12-0402:45:06
Gerber file is updated.
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-MIT
License.
